Automotive Ethernet: The Future Of In-Vehicle Communication

Automotive networks have seen tremendous evolution, moving from simple analog signals to complex digital communication systems. As modern vehicles transform into connected, autonomous, and software-defined machines, there’s an increasing need for high-speed, reliable, and scalable communication systems. This is where Automotive Ethernet comes into play.

Evolution of In-Vehicle Networks

Initially, vehicles used point-to-point wiring. This soon became cumbersome, leading to the development of serial communication protocols:

CAN (Controller Area Network) – for control and monitoring
LIN (Local Interconnect Network) – for low-speed communication
FlexRay – for time-critical systems
MOST (Media Oriented Systems Transport) – for infotainment

However, as the demand for ADAS (Advanced Driver Assistance Systems), autonomous driving, and infotainment has grown, these protocols couldn’t keep up with the bandwidth and latency requirements.

What is Automotive Ethernet?

Automotive Ethernet refers to a family of Ethernet-based communication standards specifically designed for in-vehicle networks. It adapts traditional Ethernet (used in IT) for automotive environments, considering:

Deterministic communication
EMI/EMC requirements
Automotive-grade connectors
Fault tolerance

It supports data rates from 10 Mbps to 10 Gbps, enabling fast and real-time communication across different vehicle domains.

Why Ethernet in Automotive?

High Bandwidth: Suitable for high-data applications like cameras, LiDAR, and radar.
Scalability: Easier to upgrade speeds (e.g., from 100 Mbps to 1 Gbps).
Standardization: Reuse of existing IT infrastructure and tools.
Interoperability: Enables domain fusion (e.g., ADAS + infotainment).
Cost Efficiency: Reduces wiring complexity and weight.
Real-time Communication: With TSN, it achieves deterministic communication.
IP-based Communication: Supports diagnostics, OTA updates, and V2X.

Automotive Ethernet enables high-speed and reliable communication between various Electronic Control Units (ECUs), sensors, and actuators within a vehicle. Unlike traditional in-vehicle communication protocols like CAN or LIN, Automotive Ethernet supports bandwidth-intensive applications such as Advanced Driver Assistance Systems (ADAS), infotainment, and over-the-air updates. It follows standard Ethernet protocols, tailored for the harsh automotive environment and real-time communication requirements. These enhancements ensure the compatibility, scalability, and future readiness of automotive networks.

The working begins at the data source, such as a camera or sensor, which generates raw data that needs to be transmitted to a central processor or ECU. This data is encapsulated into Ethernet frames at the MAC (Media Access Control) layer and passed to the PHY (Physical Layer), where it is converted into electrical signals. These signals are transmitted over twisted-pair cables using standards like 100BASE-T1 or 1000BASE-T1, which are optimized for single-pair, unshielded or shielded automotive wiring.

Upon receiving the data, the destination ECU’s PHY layer decodes the signals and sends them up through the MAC and network layers. If the data is IP-based, it travels through additional layers like IP, UDP/TCP, and finally reaches the application layer for processing. The processed data may trigger actions such as braking, displaying a warning, or adjusting steering. The use of full-duplex communication ensures simultaneous data transmission and reception without collisions.

Time-sensitive networking (TSN) plays a crucial role in ensuring deterministic data delivery in Automotive Ethernet systems. Protocols like IEEE 802.1AS for time synchronization and 802.1Qbv for scheduled traffic help prioritize safety-critical messages over less important data streams. This enables real-time control applications, such as emergency braking or lane-keeping systems, to function reliably even in high-traffic data environments.

Overall, Automotive Ethernet transforms the vehicle into a high-performance computing network on wheels. It allows seamless communication between domain controllers, sensors, and actuators, supporting current features and enabling future innovations like autonomous driving. With enhanced speed, bandwidth, and interoperability, it forms the backbone of modern and next-generation vehicle architectures.m

Automotive Ethernet Standards

IEEE Standard	Speed	Use Case
100BASE-T1	100 Mbps	Camera, infotainment, ADAS
1000BASE-T1	1 Gbps	Sensor fusion, central computing
10BASE-T1S	10 Mbps	Replaced CAN/LIN in low-speed zones
10GBASE-T1	10 Gbps	Central data hub for autonomous systems

OPEN Alliance:

The OPEN Alliance SIG (One-Pair EtherNet) is an industry consortium that develops specifications around Ethernet use in automotive, like:

BroadR-Reach
TC8/TC11 test cases
EMC requirements

Automotive Ethernet Topologies

01. Point-to-Point

Simplest form
Mostly used for sensors and actuators

02. Star Topology

Central ECU as the gateway
Common in zonal architectures

03. Daisy Chain (Line Topology)

Used with 10BASE-T1S
Reduces connector and cable count

04. Ring Topology

Provides redundancy
Used in critical systems like autonomous driving

Key Protocols and Technologies

Protocols:

IP (Internet Protocol) – Core networking layer
UDP/TCP – For data transmission
Some/IP – Service-oriented middleware protocol
AVB/TSN – Real-time data handling
DoIP – Diagnostics over IP

TSN (Time-Sensitive Networking) Features:

802.1AS – Time synchronization
802.1Qbv – Scheduled traffic
802.1Qci – Per-stream filtering
802.1CB – Frame replication and elimination for reliability

Physical Layer and Connectors

Connectors:

FAKRA – Cost-effective and standardized
Rosenberger H-MTD – Compact and high-speed
Mini-FAKRA – Smaller footprint for space-constrained areas

Cables:

Unshielded Twisted Pair (UTP)
Shielded Twisted Pair (STP)

EMC Considerations:

Twisted-pair cables reduce EMI
Shielding may be needed for harsh environments

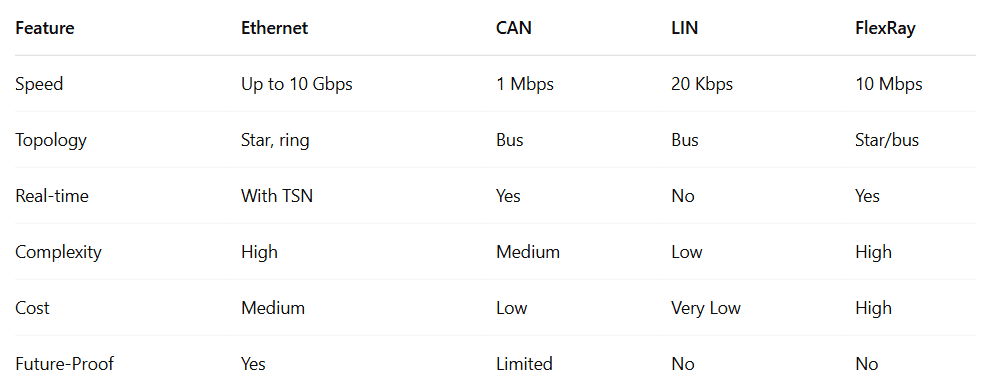

Comparison: Automotive Ethernet vs CAN, LIN, FlexRay

Applications of Automotive Ethernet

01. ADAS & Autonomous Driving

Camera to ECU
Sensor fusion
High-speed raw video streams

02. Infotainment

Head units to displays
Media streaming

03. Connectivity

Telematics units
V2X communication
5G Modems

04. Diagnostics & OTA

Ethernet supports fast and efficient vehicle diagnostics
DoIP and OTA update systems

05. Domain & Zonal Architectures

Supports centralized and zonal computing architectures

Challenges and Considerations

01. EMI and EMC

High-speed lines prone to noise
Requires good shielding and testing

02. Deterministic Behavior

Ensuring real-time performance across networks

03. Network Design

Migration from legacy CAN/LIN/FlexRay to Ethernet

04. Cost Optimization

Balancing performance vs. cost for mass production

05. Standardization and Interoperability

Managing differences in implementations among vendors

Testing and Validation in Automotive Ethernet

Testing Types:

Conformance Testing – IEEE and OPEN Alliance standards
EMC Testing – Radiated and conducted emissions
Interoperability Testing – Multi-vendor devices
Network Load Testing – Under full traffic and stress
Timing and Latency Testing – For TSN compliance

Tools Used:

Vector CANoe with Ethernet module
dSPACE and NI HIL systems
Keysight, Rohde & Schwarz analyzers

Automotive Ethernet Security

Risks:

IP-based architecture opens doors for cyber-attacks
OTA updates and remote access increase vulnerabilities

Security Measures:

MACsec (IEEE 802.1AE) – Data encryption on Ethernet links
Firewall and IDS (Intrusion Detection System)
Secure Boot and Secure Diagnostics
Authentication Protocols – TLS, SSH, IPsec

The Role of Time-Sensitive Networking (TSN)

TSN transforms traditional Ethernet into a deterministic, real-time network suited for safety-critical automotive systems.

Benefits:

Time synchronization across ECUs
Guaranteed bandwidth
Traffic prioritization
Frame redundancy

Use Cases:

ADAS sensor fusion
Brake-by-wire and steer-by-wire systems
Real-time infotainment streaming

Future Trends and Innovations

01. Zonal Architectures: Ethernet acts as the backbone for zone ECUs to central computers

02. Edge AI and Ethernet: Data-heavy AI modules require high-throughput, low-latency connections

03. Software-defined vehicles (SDV): Ethernet enables modular software updates and SDV platforms

04. Ethernet & V2X: Seamless integration of V2X data streams via high-speed Ethernet

05. Growth of Multi-Gig Ethernet: 2.5G, 5G, 10G Automotive Ethernet adoption in luxury and autonomous vehicles

Conclusion

Automotive Ethernet is reshaping the in-vehicle communication landscape by offering a scalable, high-speed, and standardized networking platform. With increasing focus on autonomous driving, connected services, and software-defined vehicles, Ethernet provides the necessary backbone to support these innovations.

Engineers, OEMs, and tier-1 suppliers must adapt to this paradigm shift by mastering Ethernet-based architectures, tools, testing techniques, and cybersecurity practices.

This was about “Automotive Ethernet: The Future Of In-Vehicle Communication”. Thank you for reading.
