A Novel Technique And Performance Analysis Of A Three Phase Wind Integrated UPQC

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

Hello guys, in this zip file you will find the Matlab Simulink model on a novel technique and performance analysis of a three-phase wind integrated UPQC.

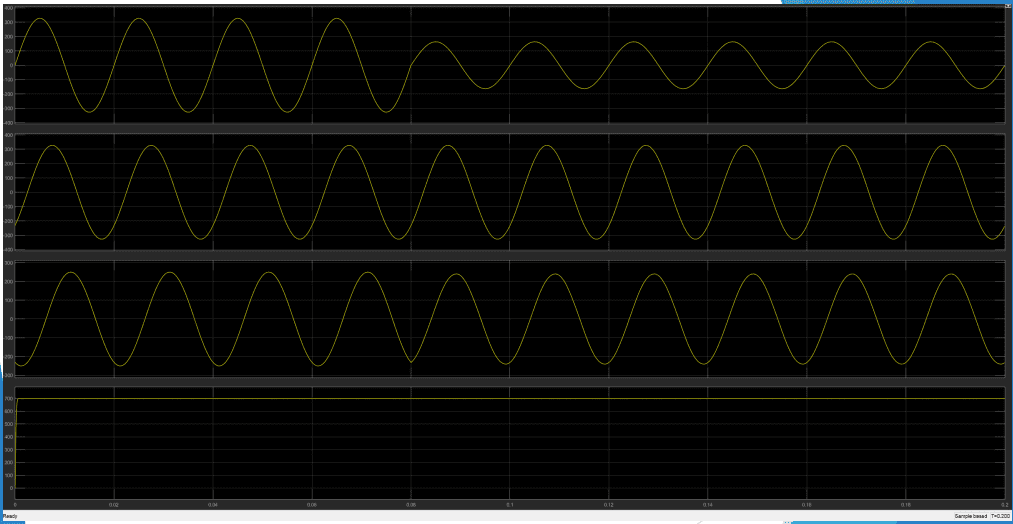

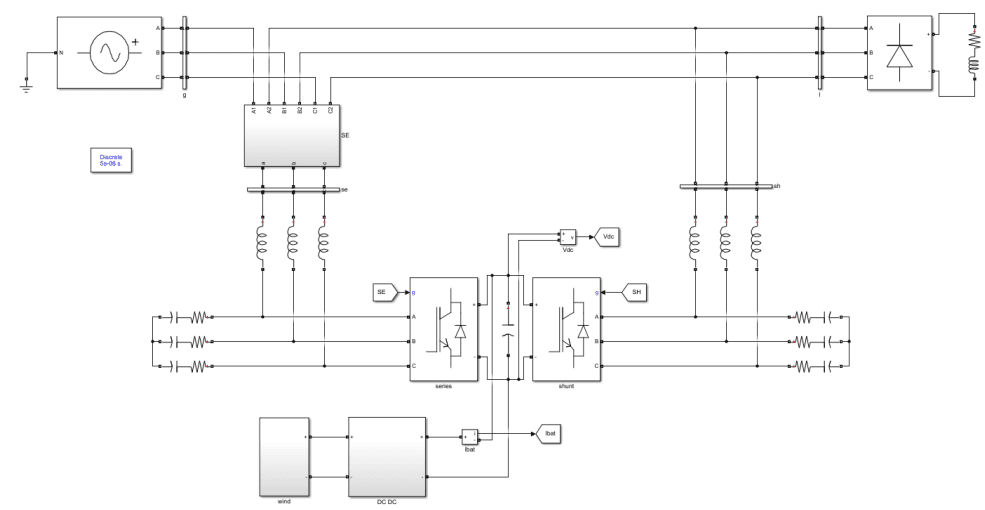

This project deals with the improvement of the power quality of the output of the three-phase Wind power plant by coordinating it with the Unified Power Quality Conditioner(UPQC). The UPQC contains a shunt and series voltage compensators connected in a back-to-back connection. These are used to extract the power from the wind power plant as well as compensate for the voltage and load current harmonics. The compensator injects the voltage in-phase/out of phase with the point of common coupling(PCC) voltage during swag and swells conditions to improve the voltage at the load side. Thus by combining the wind power plant with UPQC we can obtain clean energy with improved power quality.

Due to the use of power electronic devices, the nonlinear current flowing through the instrument causes the generation of harmonics. The increasing demand of customers at the load side may cause voltage sag which may affect the overall quality of power. It is essential that the utility grid supplies power with the best quality and within the permissible range. The utility grid should provide supply reliably and continuously. Hence in order to maintain stable voltage at the grid as well as load side, a multipurpose device is required. Hence this project deals with the use of UPQC devices with wind power plants.
