Mathematical Modelling On VSI Fed PMSM Using DTC Method

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

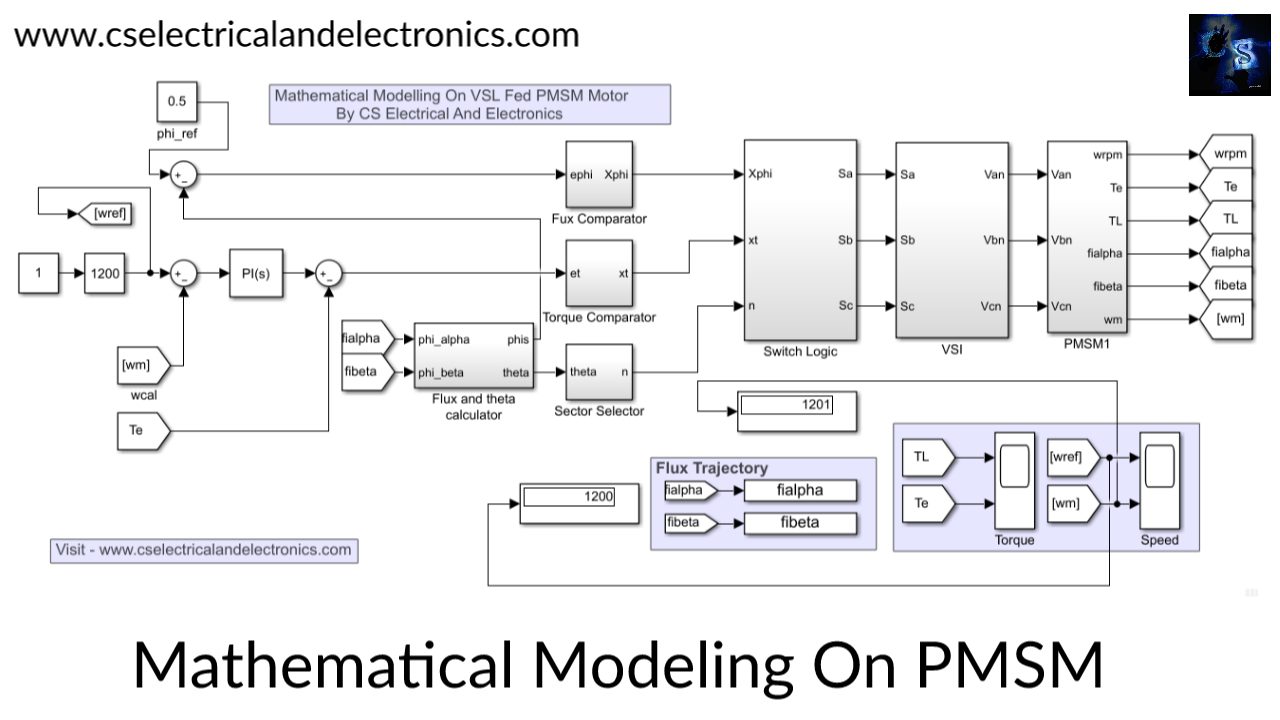

To develop a mathematical model of PMSM and implement direct torque control of PMSM and to evaluate the performance of PSMS motor drive.

https://www.youtube.com/watch?v=xNXCxORXJ8Q

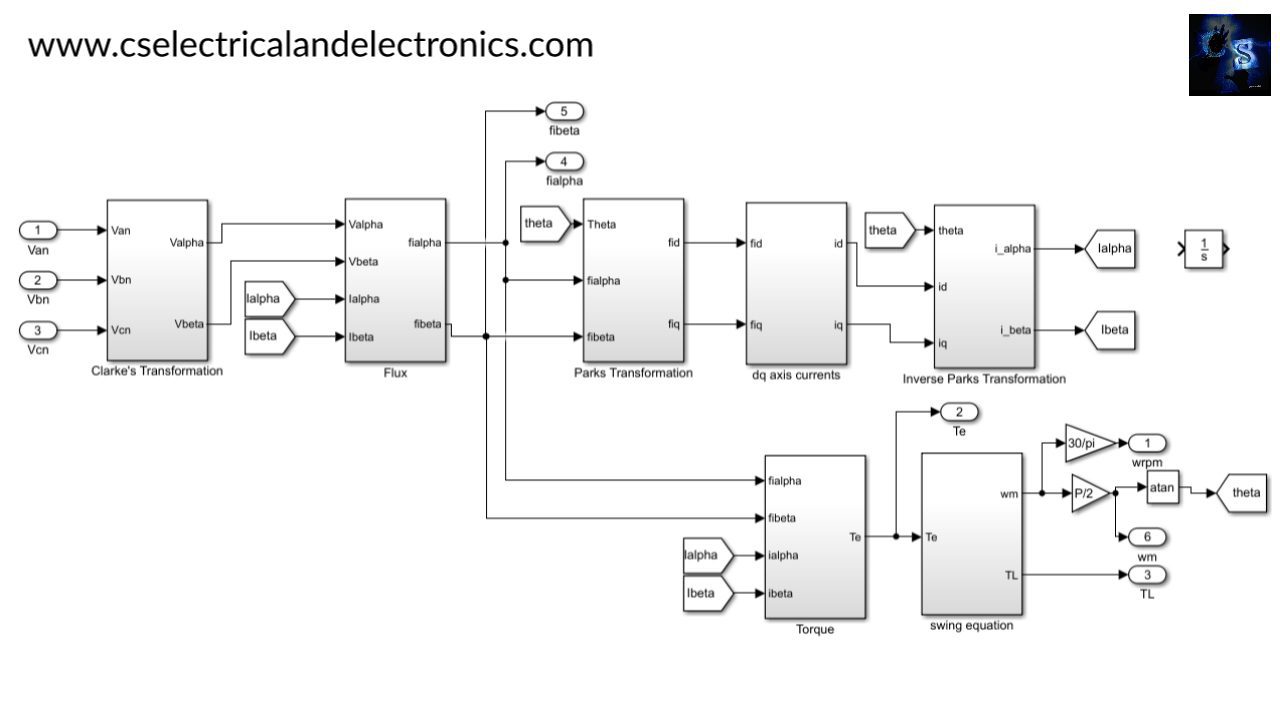

The stator of the PMSM comprises balanced three-phase winding similar to the wound rotor synchronous motor. The mathematical model of PMSM is derived from that of a wound rotor machine under the assumption that the armature emf is induced by the permanent magnets in place of dc excitation.



In this zip file, you will find slx file, script(m file), and pdf.



Three signals affect the control action in a DTC system. They are namely

1. Torque
2. The amplitude of the stator flux linkage
3. Angle of the resultant flux vector

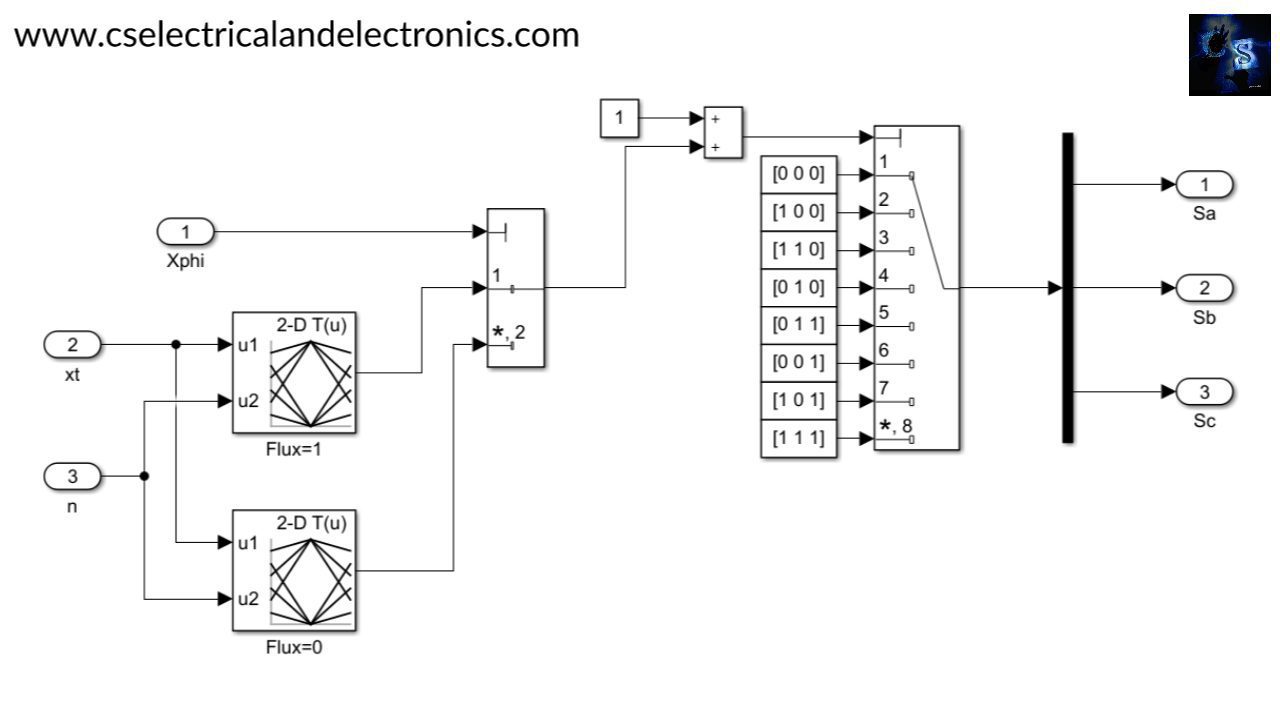

The estimator obtains the torque and flux signal. Regulation of these two signals is done with the help of two hysteresis controllers. The rotor position estimator and the hysteresis controller give output signals to the switching table who in turn selects the switching of the inverter legs and applies a set of voltage vectors across the motor terminals.
