Three-Phase 5-Switch 7-Level Cascaded Multilevel Inverter

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

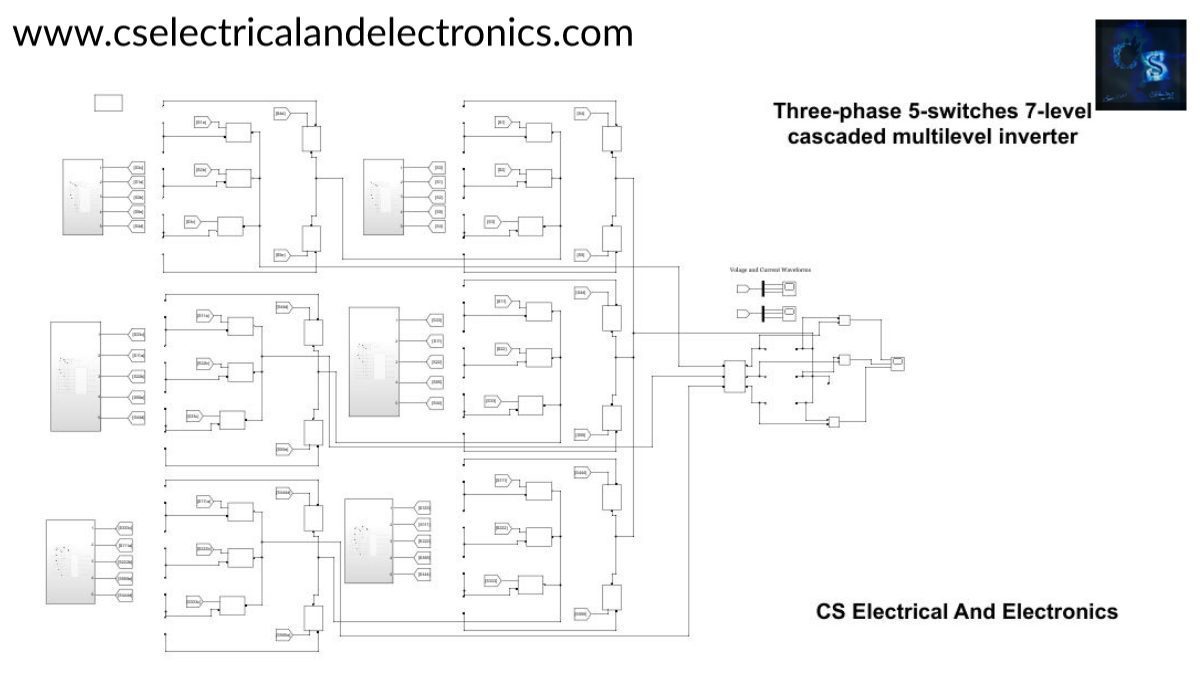

Hello guys, in this zip file you will find the Matlab Simulink model on a three-phase 5-switch 7-level cascaded multilevel inverter.

For thesis, message us on WhatsApp.

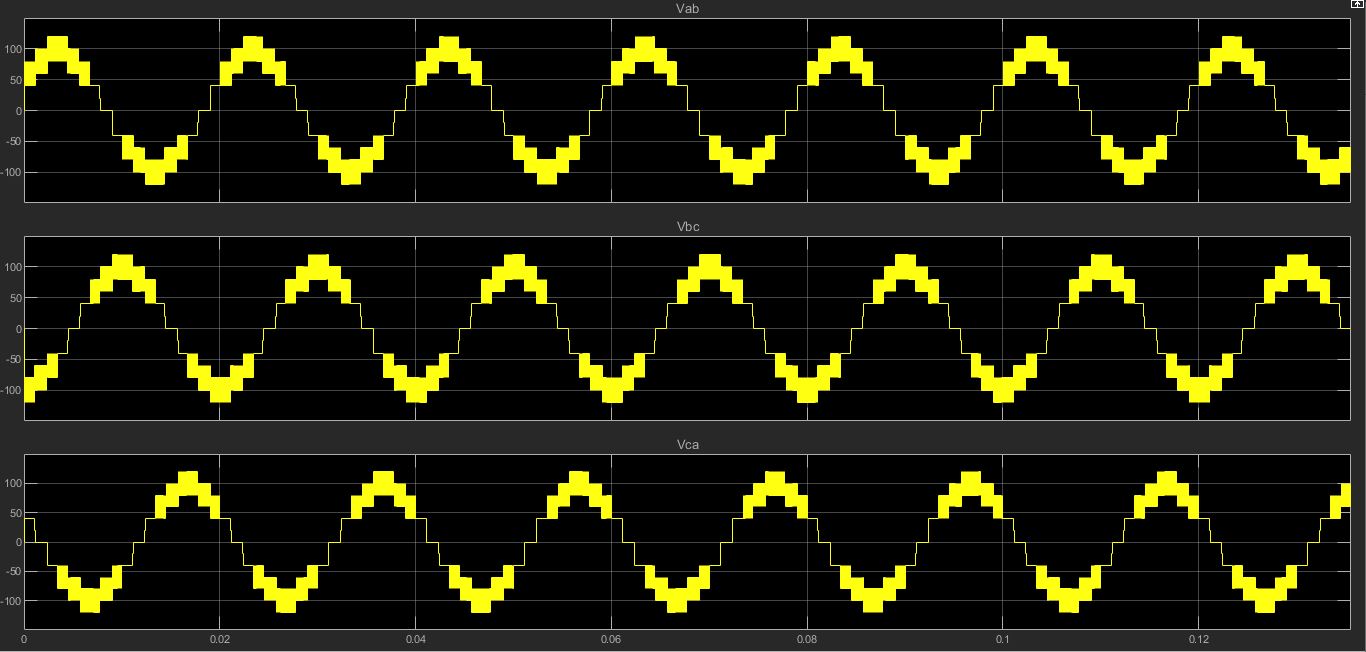

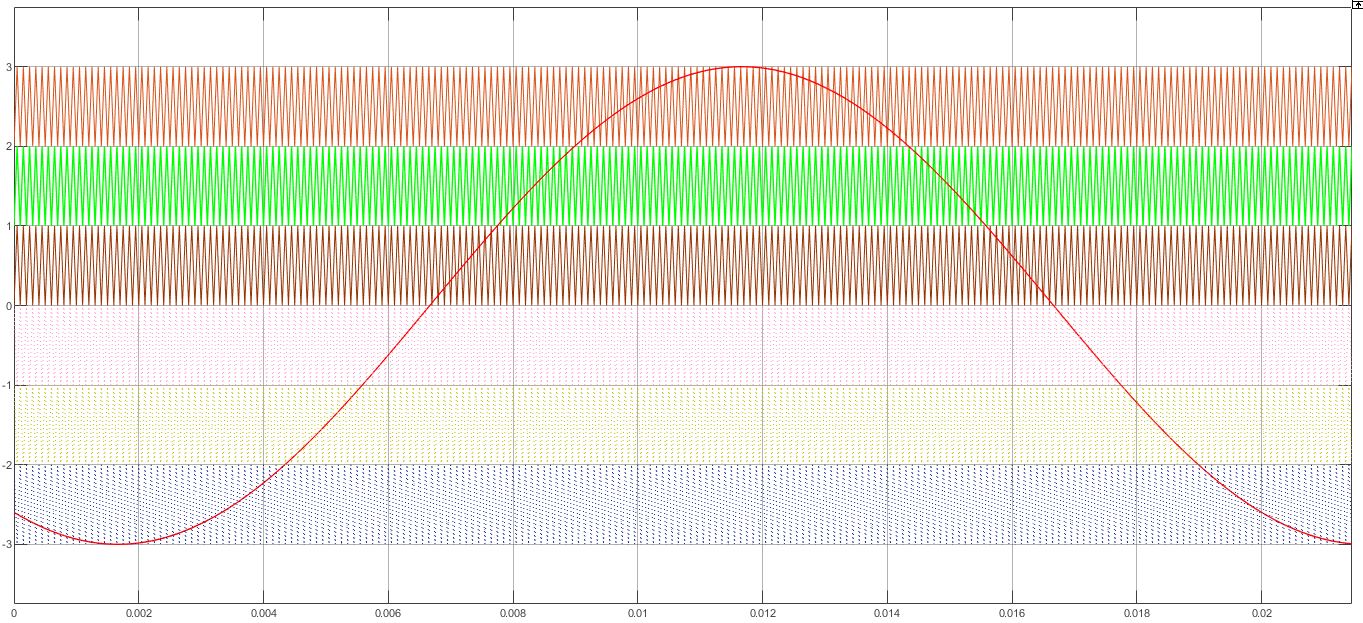

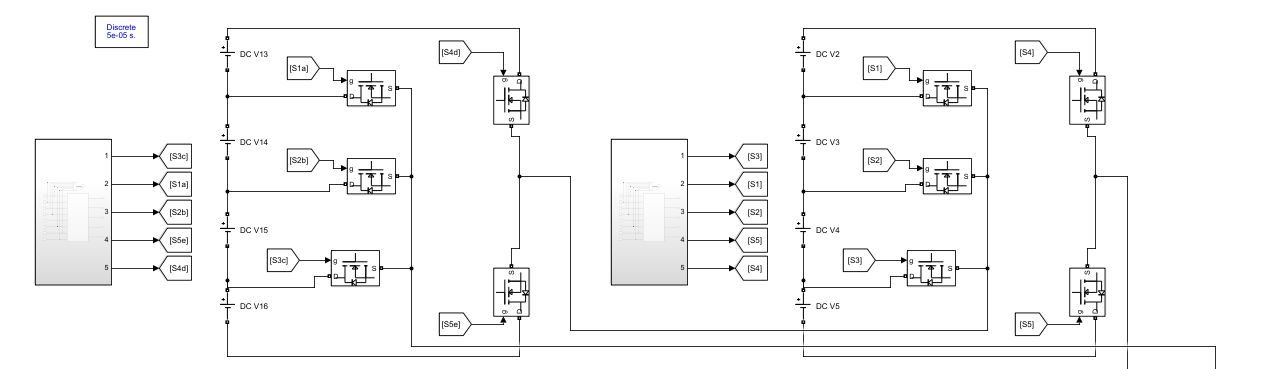

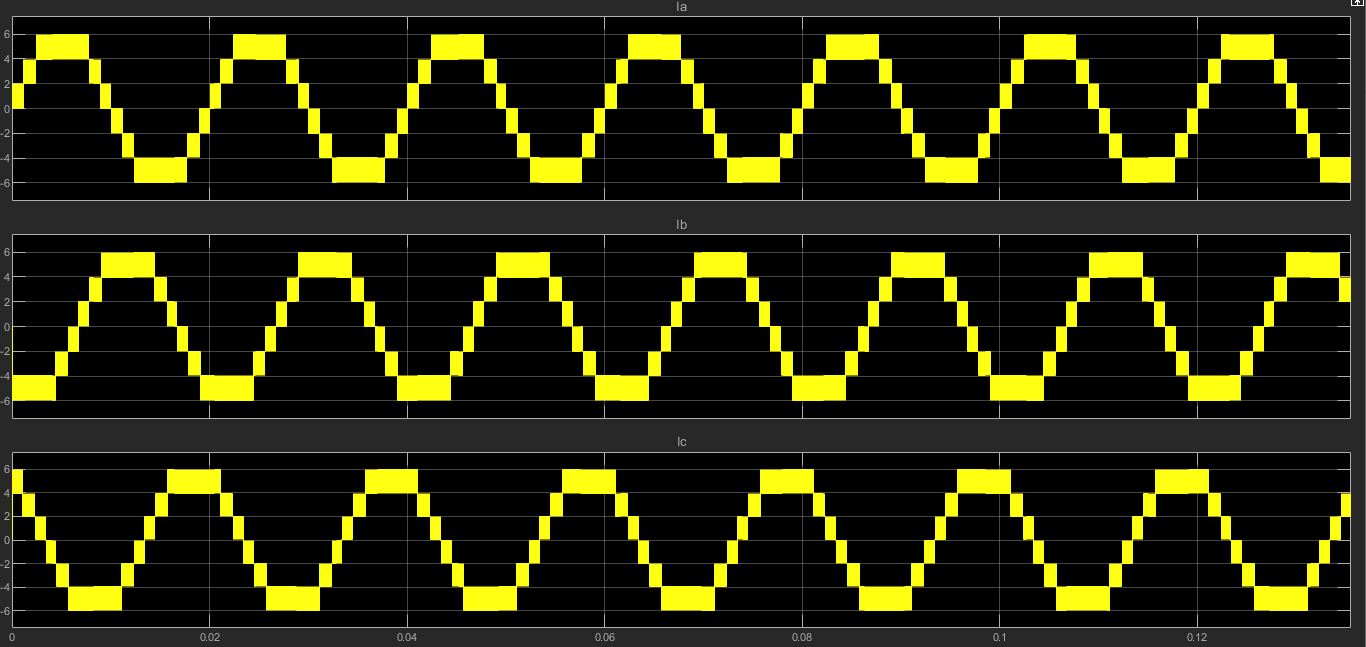

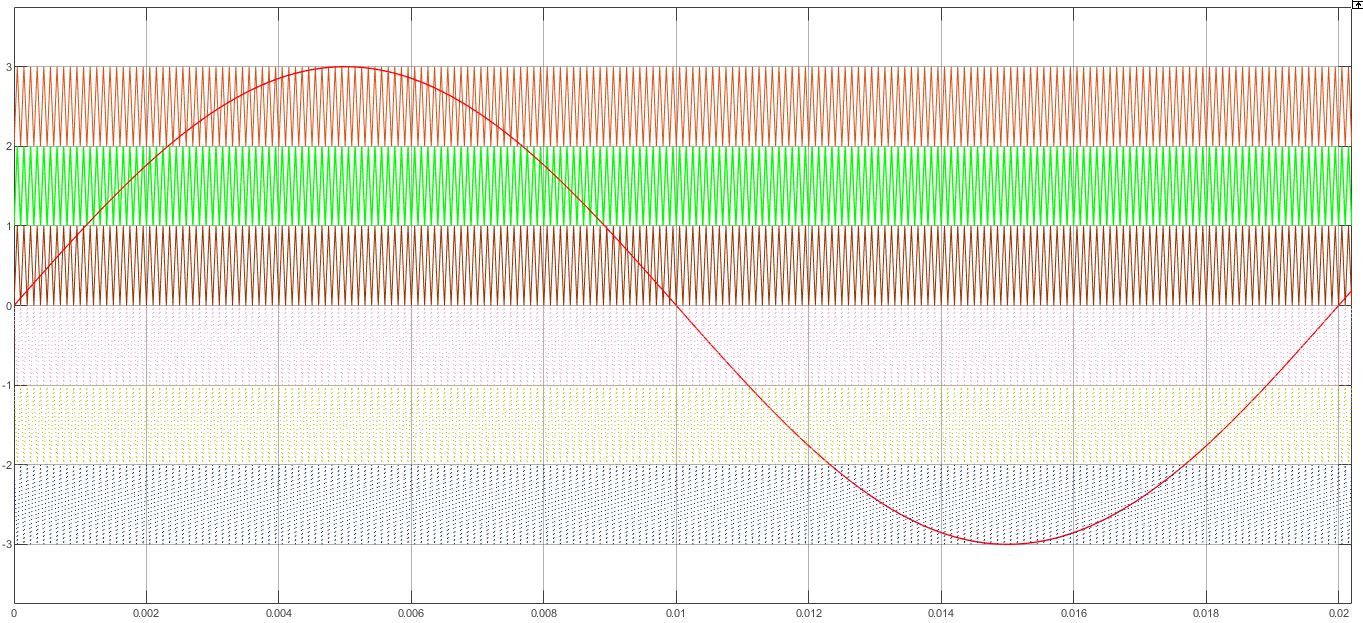

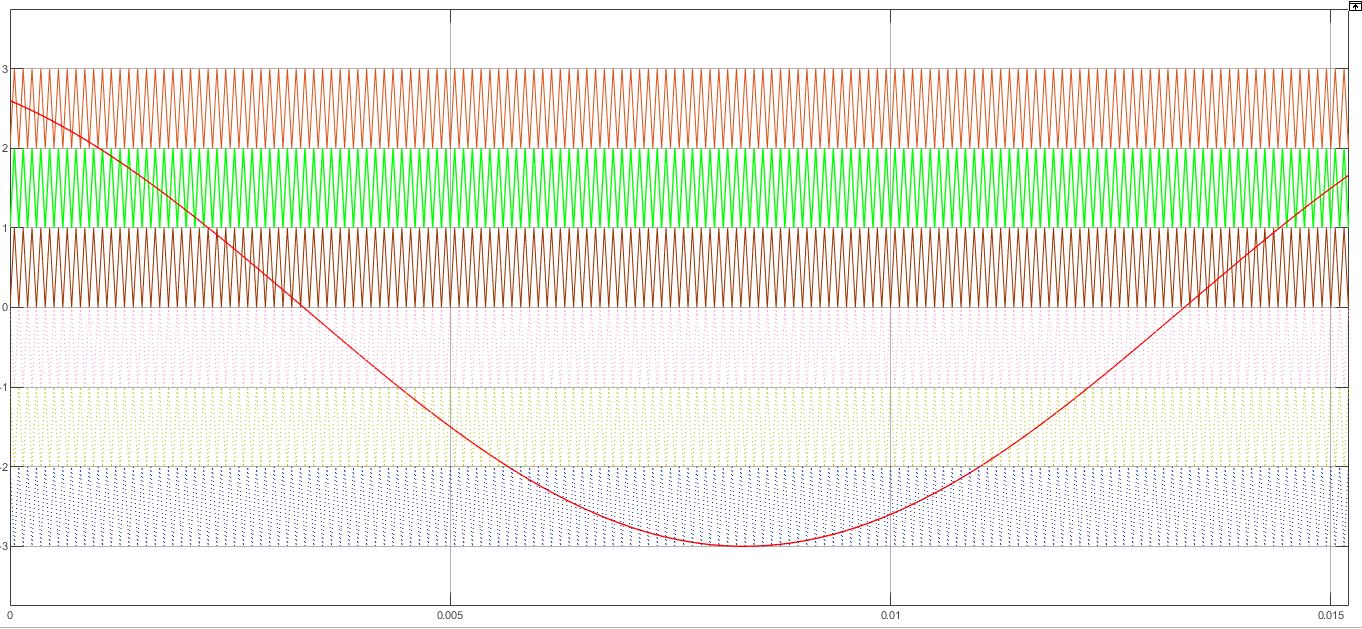

In this design, a new 5 switch seven-position DC-AC inverter is being proposed. The proposed cascaded multilevel inverter uses a reduced number of switches as compared to the switches used in the conventional multilevel inverter. The inverter has been designed to induce a 7 position AC affair using 5 switches. The voltage stress on each of the switches as well as the switching losses are planted to be less, minimizing common-mode voltage (CMV) position and reducing total harmonious deformation. The proposed 7- position inverter topology has four dc sources, which are amped through the PV system. The proposed inverter is controlled with help of multicarrier sinusoidal palpitation range modulation (MCSPWM). The simulation results were vindicated using Matlab Simulink.

Disclaimer:

Please note, that this product is owned by us, and if you upload this file on Youtube or Internet after purchasing it. Then you will get a copyright complaint from us.

Thanks & regards,
CS Electrical And Electronics Team
