Errors Found In MiL, SiL, And HiL Testing

In the modern automotive development process, ensuring the reliability, safety, and performance of embedded systems is paramount. Model-based design (MBD) plays a pivotal role in achieving these objectives through iterative testing and validation phases known as Model-in-the-Loop (MiL), Software-in-the-Loop (SiL), and Hardware-in-the-Loop (HiL). Each of these stages helps detect specific classes of errors that could compromise the vehicle’s safety or performance. In this article, we will explore the kinds of errors uncovered during MiL, SiL, and HiL testing, providing a comprehensive guide for automotive software engineers, validation teams, and system integrators.

Model-in-the-Loop (MiL) Testing

MiL is the initial simulation phase where the control algorithms are tested using models, typically in environments like MATLAB/Simulink. The goal is to validate the system’s logic, mathematical formulation, and dynamic behavior before software implementation.

Types of Errors in MiL (Model-in Loop)

a) Logical Errors

Misimplementation of control logic
Incorrect transition conditions in Stateflow charts
Faulty use of logic gates

b) Modeling Errors

Incorrect mathematical representation
Feedback loops without delays causing algebraic loops
Usage of continuous blocks in fixed-step simulations

c) Interface Errors

Mismatch in input/output signal dimensions
Incorrect port connections

d) Parameterization Errors

Wrong parameter values for gains, constants
Unit mismatches (e.g., using m/s instead of km/h)

e) Numerical Errors

Division by zero
Overflow or underflow conditions
Poor conditioning of mathematical operations

f) Algorithm Design Issues

Oversimplified or overly complex models
Poor scalability of models
Lack of modularity, making debugging difficult

g) Requirement Mismatch

Incomplete traceability from requirements to model
Uncovered test scenarios

Benefits of MiL Error Detection

Early-stage debugging reduces downstream costs
Allows easy changes before software generation
Ensures algorithms align with functional requirements

Software-in-the-loop (SiL) Testing

In SiL, the model is converted into C code and executed in a simulation environment to ensure the generated code maintains the same behavior as the original model. It bridges the gap between theoretical models and practical implementation.

Types of Errors in SiL

a) Code Generation Errors

Loss of precision due to data type conversions
Misinterpretation of algorithm logic in generated code

b) Data Type Mismatch

Float to integer conversions causing truncation
Incorrect fixed-point scaling

c) Functionality Errors

Differences in execution results between model and generated code
Behavioral deviations due to compiler optimizations

d) Memory Management Errors

Stack overflow
Heap misallocation
Static vs dynamic memory usage mismatch

e) Compiler Issues

Compiler-specific warnings or errors
Portability issues across compilers

f) Timing Issues

Task overruns due to inefficient code
Incorrect scheduling in multitask environments

g) Interface Errors

Incorrect I/O definitions in the code
Communication stack errors during message simulation

Benefits of SiL Error Detection

Ensures code fidelity with the model
Enables tuning for optimization before actual deployment
Catches early software-level bugs without hardware involvement

Hardware-in-the-loop (HiL) Testing

HiL simulates real-world operating conditions by connecting the ECU to a real-time system that mimics vehicle sensors and actuators. It provides the closest possible environment to in-vehicle testing.

Types of Errors in HiL

a) Real-Time Execution Errors

Missed deadlines in real-time task execution
Latency in sensor response simulation

b) Hardware Integration Issues

Incorrect ECU pin mapping
Poor power supply or grounding
Short circuits and connector faults

c) Communication Interface Errors

CAN/LIN/FlexRay misconfigurations
Protocol timing violations
Bus load issues

d) Sensor/Actuator Simulation Issues

Incorrect signal conditioning
Sensor signal drift or noise simulation errors

e) DTC Logging and Diagnostic Issues

Incorrect DTC storage and retrieval
Failure in executing UDS services like Read/Write Data By Identifier

f) Environmental Condition Testing Errors

Failure under simulated voltage variations (e.g., cranking tests)
Thermal behavior mismatches not captured

g) Timing and Synchronization Errors

Delay in ECU and HiL tool communication
Clock drift issues

h) Safety Feature Validation Failures

Failsafe or degraded mode not triggered properly
Emergency braking or fallback strategies not activated

Benefits of HiL Error Detection

Verifies complete system integration
Tests edge-case scenarios difficult to reproduce in-vehicle
Reduces need for expensive and risky road testing

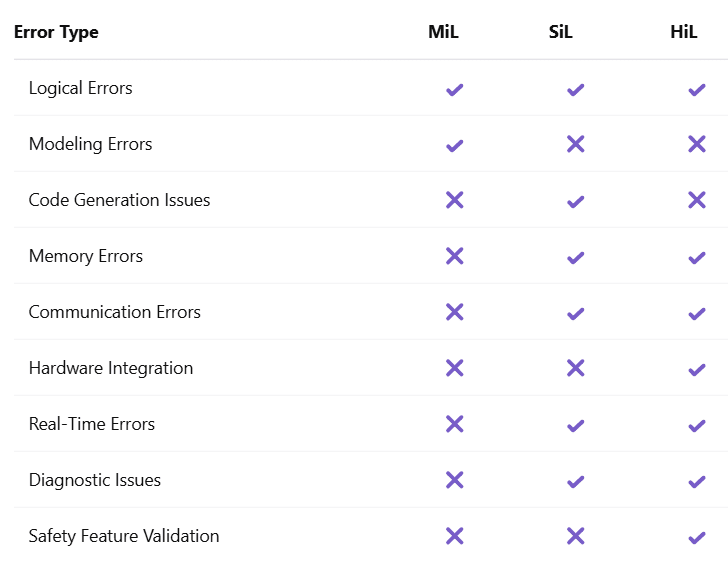

Comparison Table: Errors in MiL, SiL, and HiL

Best Practices for Error Mitigation Across MiL, SiL, and HiL

Maintain strict version control for models and code
Implement continuous integration pipelines for MiL/SiL/HiL
Use requirement-based testing
Perform static and dynamic analysis
Use model and code coverage tools
Create automated test suites with traceability to requirements
Maintain consistent interface definitions across all phases
Document errors and fixes with traceability

Conclusion: The progressive testing approach through MiL, SiL, and HiL is foundational in modern automotive embedded system development. Each phase plays a crucial role in uncovering distinct types of errors. A deep understanding of these errors enables developers and testers to implement effective mitigation strategies, ensuring the delivery of high-quality, reliable, and safe automotive systems. As automotive systems grow more complex with the advent of ADAS, electrification, and autonomous vehicles, robust validation across these testing levels is more critical than ever.

By identifying errors early and across multiple simulation environments, teams can reduce time-to-market, lower development costs, and, most importantly, build safer vehicles for the road.
