Battery Management Systems (BMS)

With the growing adoption of electric vehicles (EVs), renewable energy storage, and portable electronic devices, the need for efficient and reliable Battery Management Systems (BMS) has never been greater. A BMS plays a crucial role in ensuring the optimal performance, safety, and longevity of battery packs.

This comprehensive guide will cover the fundamentals of BMS, its key functions, architecture, components, design considerations, challenges, and future trends.

What is a Battery Management System (BMS)?

A Battery Management System (BMS) is an electronic system that manages a rechargeable battery by monitoring its state, controlling its environment, and protecting it from operating outside safe limits. It is widely used in electric vehicles (EVs), energy storage systems (ESS), uninterruptible power supplies (UPS), and industrial battery applications.

Key Objectives of a BMS:

Ensuring battery safety
Maximizing battery life
Enhancing performance and efficiency
Providing real-time monitoring and diagnostics

Key Functions of BMS

01. Battery Monitoring

A BMS continuously monitors critical battery parameters, including:

Voltage (of individual cells and the overall pack)
Current (charging/discharging rates)
Temperature (to prevent overheating and thermal runaway)
State of Charge (SoC) estimation
State of Health (SoH) assessment

02. Battery Protection

Protection mechanisms prevent damage due to excessive voltage, current, or temperature fluctuations. BMS ensures safe operation by:

Overvoltage and undervoltage protection
Overcurrent and short-circuit protection
Overtemperature and undertemperature control
Cell balancing to equalize charge levels

03. Cell Balancing

Cell balancing is essential in multi-cell battery packs to prevent some cells from becoming overcharged or over-discharged. There are two types:

Passive Balancing: Excess energy from fully charged cells is dissipated as heat.
Active Balancing: Redistributes excess energy from stronger cells to weaker ones, improving efficiency.

04. State Estimation

The BMS calculates key battery metrics:

State of Charge (SoC): The available battery capacity compared to its full capacity.
State of Health (SoH): The overall health and aging status of the battery.
Depth of Discharge (DoD): The percentage of battery capacity used during a discharge cycle.

05. Thermal Management

Temperature control is critical for battery safety and longevity. BMS integrates cooling and heating mechanisms, such as:

Air Cooling: Used in low-power applications.
Liquid Cooling: Preferred for high-power applications like EVs.
Phase Change Materials (PCM): Helps regulate temperature fluctuations.

06. Fault Diagnosis and Communication

A BMS detects abnormalities such as internal shorts, thermal runaways, and capacity degradation and communicates data via protocols like:

CAN (Controller Area Network)
I2C (Inter-Integrated Circuit)
UART (Universal Asynchronous Receiver-Transmitter)
Ethernet (for high-end applications)

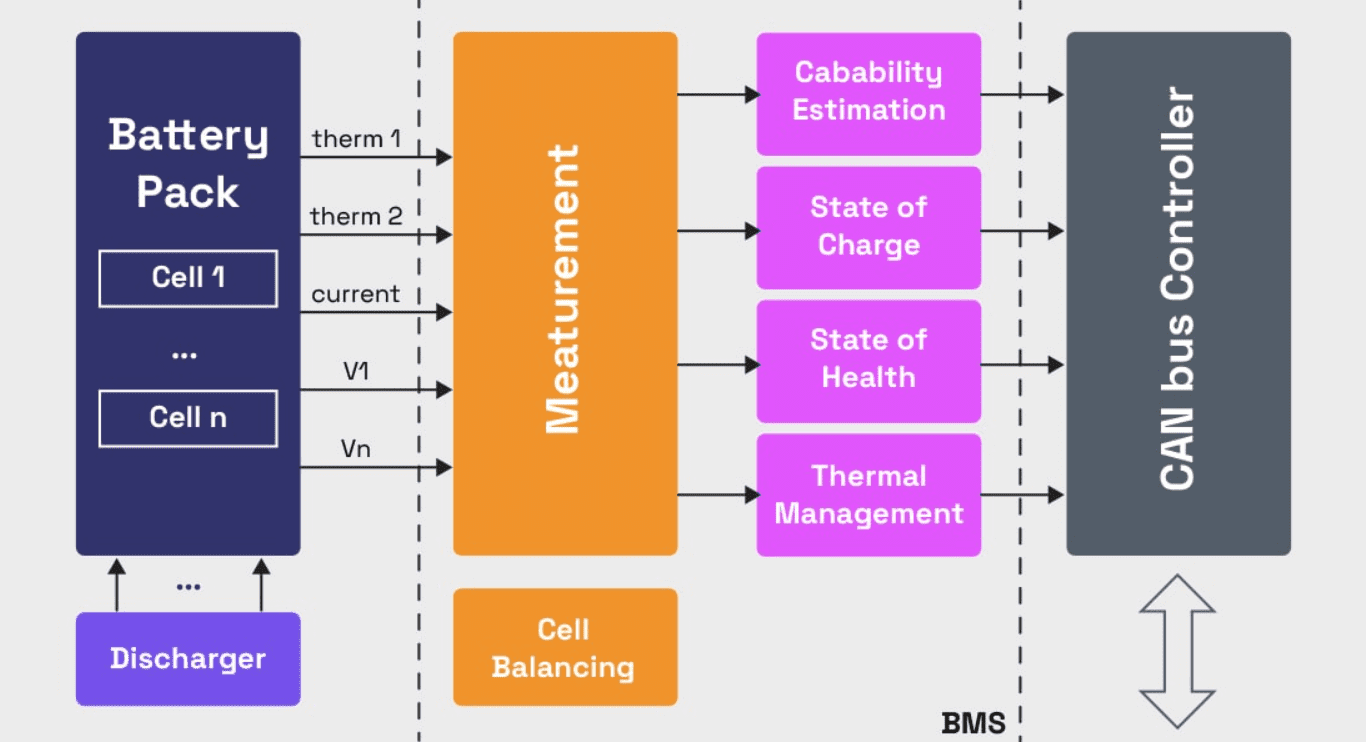

BMS Architecture

01. Centralized BMS

Uses a single control unit for all battery cells.
It has a simple design but may have scalability issues.

02. Distributed BMS

Each cell has its own dedicated monitoring unit.
Improves scalability and fault tolerance.

03. Modular BMS

Uses multiple controllers, each handling a group of cells.
Offers a balance between centralized and distributed architectures.

Components of a BMS

A typical BMS consists of:

Battery Management Controller (BMC): The brain of the BMS, processing real-time data.
Voltage and Current Sensors: Measures cell voltage and current.
Temperature Sensors: Monitor heat variations.
Balancing Circuit: Ensures uniform charge distribution.
Power Supply Unit: Provides energy to the BMS components.
Communication Interface: Facilitates data exchange with external systems.

Design Considerations for BMS

01. Battery Chemistry Compatibility

A BMS must be designed for specific battery chemistries such as:

Lithium-ion (Li-ion) (common in EVs and portable devices)
Lead-acid (used in UPS and automotive applications)
Nickel-Metal Hydride (NiMH) (found in hybrid vehicles)

02. Power Consumption: An efficient BMS should consume minimal power to prevent draining the battery unnecessarily.

03. Scalability: For large-scale applications (EVs, grid storage), a scalable BMS is essential.

04. Redundancy and Fault Tolerance: To enhance reliability, redundancy in monitoring circuits is critical.

05. Environmental Conditions: BMS design must account for temperature, humidity, and vibration factors.

Challenges in BMS Development

01. Accuracy of SoC and SoH Estimation: SoC and SoH estimation techniques require precise algorithms and data calibration.

02. Thermal Runaway Prevention: Lithium-ion batteries pose risks of thermal runaway, necessitating robust thermal management.

03. Cost Constraints: Advanced BMS solutions with active balancing and sophisticated fault detection can be expensive.

04. Integration with Smart Grids and IoT: Modern BMS must be compatible with IoT and smart energy grids for data analytics and predictive maintenance.

Future Trends in BMS

01. AI and Machine Learning in BMS: AI-based BMS can predict battery failures, optimize charging cycles, and enhance battery longevity.

02. Wireless BMS (wBMS): Eliminates complex wiring, reducing weight and improving reliability in EVs.

03. Solid-State Battery Management: With solid-state batteries emerging, BMS needs to adapt to new monitoring techniques.

04. Blockchain for Battery Data Security: Blockchain technology can secure battery data, enabling the transparent tracking of battery usage and life cycles.

Conclusion

A Battery Management System (BMS) is essential for ensuring the safe and efficient operation of battery-powered systems. From real-time monitoring and cell balancing to thermal management and fault detection, a BMS plays a vital role in extending battery life and improving overall performance.

As the demand for electric vehicles (EVs), energy storage systems (ESS), and renewable energy solutions grows, BMS technology will continue evolving. The integration of AI, IoT, and smart-grid connectivity will shape the next generation of battery management systems, making them more efficient, reliable, and intelligent.

This was about “Battery Management Systems (BMS): A Complete Guide“. Thank you for reading.
