Hello guys, welcome back to our blog. Here in this article, I will discuss battery state estimation such as SoC, SoH, SoP, SoE, SoF, and how they impact EV performance.

Ask questions if you have any electrical, electronics, or computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics

Battery State Estimation

Battery state estimation is a crucial aspect of electric vehicle (EV) performance and safety. It ensures optimal battery utilization, longevity, and efficiency. The primary metrics used in battery management systems (BMS) include:

State of Charge (SOC) – Represents the available energy in the battery as a percentage of its total capacity.
State of Health (SOH) – Indicates the overall health and degradation status of the battery.
State of Power (SOP) – Determines the maximum power output or input the battery can safely deliver or absorb at a given moment.
State of Energy (SoE) – Measures the total usable energy available in the battery at a given time.
State of Function (SoF) – This represents the overall functional capabilities of the battery, considering multiple operational parameters.

In this article, we will explore the importance of SOC, SOH, SOP, SoE, and SoF estimation, their impact on EV performance, and the advanced algorithms, including Kalman filtering, used in battery management systems.

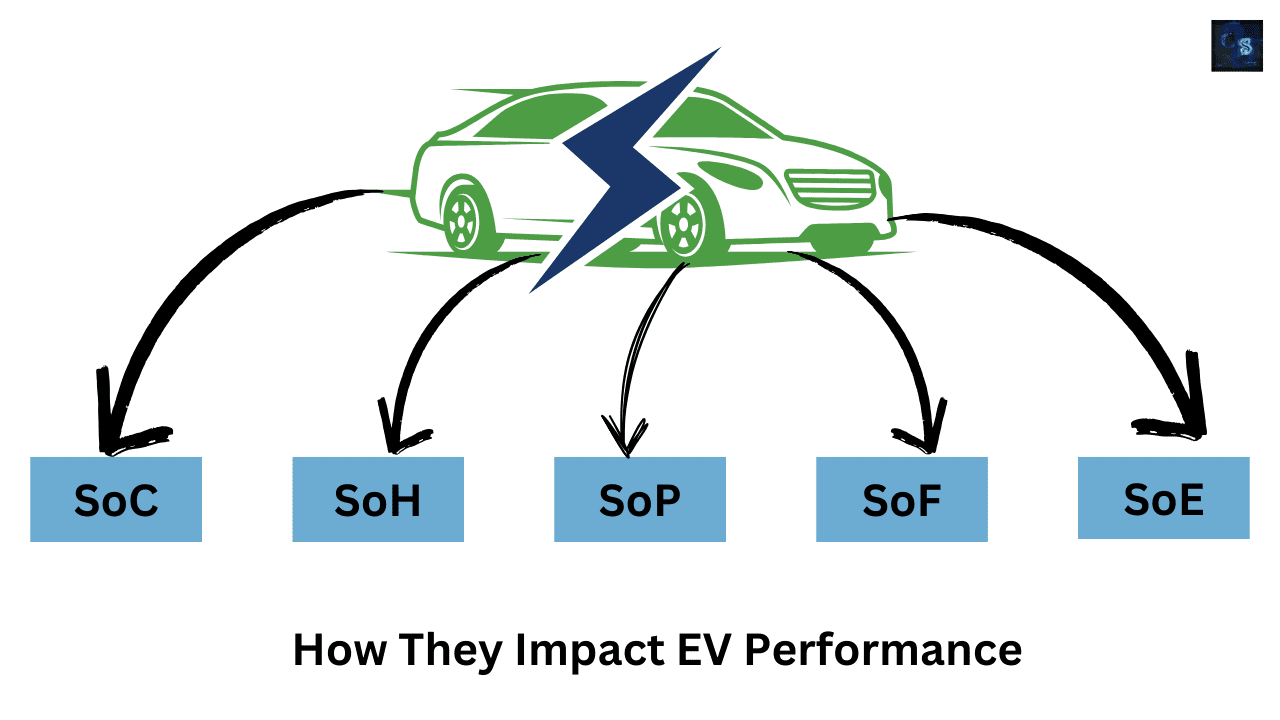

Battery State Estimation: SOC, SOH, SOP, SoE, SoF And How They Impact EV Performance

Understanding SOC (State of Charge)

SOC is analogous to a fuel gauge in internal combustion engine vehicles. It provides real-time information about how much charge remains in the battery. Accurate SOC estimation is critical for preventing unexpected power loss and optimizing charging strategies. Additionally, SOC estimation is essential for energy management systems that integrate with regenerative braking and power distribution within the EV drivetrain. Without accurate SOC estimation, energy management becomes inefficient, leading to reduced vehicle performance and a shorter driving range.

Methods of SOC Estimation

Coulomb Counting (Ampere-hour Method): Tracks charge inflow and outflow to determine SOC. However, it accumulates errors over time due to sensor inaccuracies and external factors like temperature variations and battery aging. Frequent recalibration is needed to correct deviations from the actual SOC.

01. Open Circuit Voltage (OCV) Method: Relates SOC to the battery’s voltage when no load is applied. This method is slow and affected by temperature and aging. However, it is still widely used due to its simplicity and non-intrusive nature.

02. Kalman Filtering (KF) Approach: Uses a model-based prediction combined with sensor data to refine SOC estimates dynamically. It accounts for noise in measurement signals and provides continuous SOC estimation without needing frequent recalibration.

03. Machine Learning-Based Estimation: Uses neural networks and regression models to improve SOC accuracy based on historical and real-time data. These models can adapt over time and improve accuracy with large datasets.

Understanding SOH (State of Health)

SOH represents the aging and degradation of the battery over time. It is expressed as a percentage, where 100% means the battery is in perfect condition, and lower values indicate capacity fade and increased internal resistance. SOH is a crucial metric in warranty management, second-life applications, and overall cost estimation of EV ownership.

Factors Affecting SOH

Charge-discharge cycles: Frequent deep discharges accelerate capacity loss.
High temperatures: Exposure to extreme heat reduces battery lifespan due to electrolyte decomposition.
Overcharging and deep discharging: Both extreme ends of charge levels contribute to capacity fade and increased internal resistance.
Manufacturing defects: Inconsistencies in electrode materials can impact battery longevity.

SOH Estimation Techniques

01. Internal Resistance Measurement: As a battery ages, its internal resistance increases. Higher resistance leads to increased heat generation and power loss.

02. Capacity Estimation: Measures the difference between the current capacity and the rated capacity. Requires periodic full charge-discharge cycles, which are not always practical.

03. Kalman Filter-Based Approach: Models SOH deterioration and updates predictions dynamically based on real-time observations, enhancing the accuracy of SOH tracking over the battery’s lifetime.

04. Data-Driven Methods: Machine learning algorithms are used to detect degradation patterns and predict the remaining useful life (RUL). These methods analyze large datasets from real-world battery usage to refine SOH estimates continuously.

Understanding SOP (State of Power)

SOP determines the maximum charge or discharge power a battery can handle without exceeding safety limits. It is vital for ensuring efficient power delivery during acceleration and safe regenerative braking. Accurate SOP estimation prevents excessive heat buildup, which can lead to battery failure or thermal runaway.

SOP Estimation Techniques

01. Empirical Modeling: Uses pre-defined curves and test data to estimate available power. Though simple, it lacks adaptability to real-world variations in battery conditions.

02. Physics-Based Models: Simulates electrochemical reactions to predict power limits. These models require significant computational resources and extensive calibration.

03. Extended Kalman Filtering (EKF) and Unscented Kalman Filtering (UKF): These algorithms provide adaptive SOP estimation based on real-time conditions. They account for variations in battery resistance, capacity, and environmental factors.

Understanding SoE (State of Energy)

SoE is a measure of the total usable energy available in the battery. It is particularly useful for energy management and predicting EV range. SoE depends on SOC, SOH, temperature conditions, and power demands. Accurate SoE estimation ensures that an EV operates efficiently without depleting the battery unexpectedly.

Understanding SoF (State of Function)

SoF represents the overall functional capability of the battery in real time. It is a composite metric derived from SOC, SOH, SOP, and SoE. SoF helps determine whether a battery can meet the dynamic power demands of an EV, ensuring smooth operation under various driving conditions.

The Role of Kalman Filtering in Battery State Estimation

Kalman filtering is extensively used in estimating SOC, SOH, SOP, SoE, and SoF. It provides real-time correction of measurement errors and adapts to dynamic operating conditions. Advanced variants like UKF and Particle Filters further enhance accuracy by accounting for non-linearities in battery behavior.

Impact of SOC, SOH, SOP, SoE, and SoF on EV Performance

Range Estimation and Energy Efficiency: SOC and SoE estimation optimize driving range and energy utilization.
Safety and Reliability: SOH and SoF prevent battery failures and ensure optimal performance.
Battery Longevity and Cost Optimization: SOP estimation optimizes charge-discharge cycles, extending battery lifespan.

Future Trends in Battery Management and State Estimation

AI and Machine Learning for Advanced Estimation
Next-Generation Battery Technologies Impacting State Estimation
Real-Time Cloud and Edge Computing for Enhanced BMS

Conclusion

Battery state estimation plays a pivotal role in EV performance. SOC, SOH, SOP, SoE, and SoF collectively determine how well a battery operates and how long it lasts. Advanced estimation techniques, including Kalman filtering and AI-driven methods, enhance accuracy and efficiency, paving the way for safer and more reliable EVs in the future.

This was about “Battery State Estimation: SOC, SOH, SOP, SoE, SoF And How They Impact EV Performance“. Thank you for reading.
