Hello guys, welcome back to our blog. Here in this article, I will discuss the difference between an embedded coder, Simulink coder, and MATLAB coder in Automotive applications, and the purpose of each coder.

Ask questions if you have any electrical,  electronics, or computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics

Comparing Embedded Coder, Simulink Coder, And MATLAB Coder

With the increasing complexity of automotive systems, software development has become a crucial aspect of modern vehicle design. MATLAB, Simulink, and their associated coders provide powerful tools for developing, simulating, and deploying embedded software for automotive applications. Among these tools, Embedded Coder, Simulink Coder, and MATLAB Coder are widely used for automatic code generation. This article provides an in-depth comparison of these coders, focusing on their applications, strengths, limitations, and suitability for various automotive scenarios.

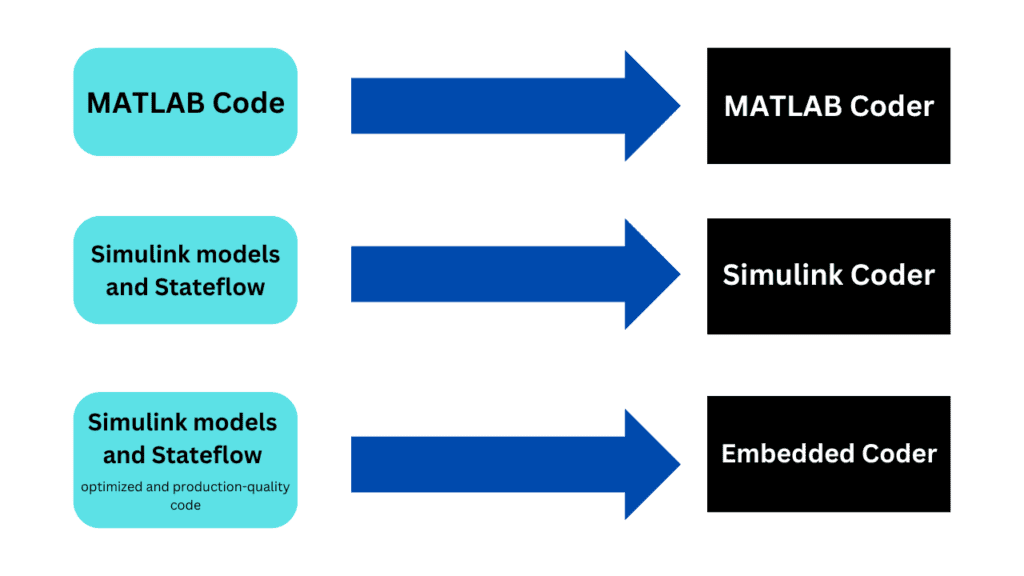

Overview of MATLAB, Simulink, and Their Coders

Comparing Embedded Coder, Simulink Coder, And MATLAB Coder

MATLAB Coder:

MATLAB Coder generates C and C++ code from MATLAB code, enabling its deployment on embedded systems. It is suitable for algorithm development and rapid prototyping.

Simulink Coder:

Simulink Coder generates C and C++ code from Simulink models and Stateflow charts. It is widely used in model-based design (MBD) for automotive applications, allowing engineers to integrate simulation models into real-time systems.

Embedded Coder:

Embedded Coder extends Simulink Coder by providing optimized and production-quality code for embedded systems. It is designed to meet stringent automotive standards, such as MISRA-C and AUTOSAR, making it the preferred choice for automotive applications.

Key Comparisons

FeatureMATLAB CoderSimulink CoderEmbedded Coder
InputMATLAB scriptsSimulink models, Stateflow chartsSimulink models, Stateflow charts
OutputC/C++ codeC/C++ codeOptimized embedded C/C++ code
OptimizationLimitedModerateHigh (Memory, Execution Speed)
Embedded System SupportBasicModerateAdvanced (MISRA, AUTOSAR, Processor-Specific Optimization)
Automotive Standard ComplianceNoPartialFull (ISO 26262, MISRA-C, AUTOSAR)
Use CaseAlgorithm prototypingModel-based designProduction-grade embedded software

01. Code Optimization

    • MATLAB Coder: Generates readable C code but lacks deep optimization.
    • Simulink Coder: Provides moderate optimization by leveraging model configurations.
    • Embedded Coder: Generates highly optimized code with low memory footprint and improved execution speed.

    02. Embedded System Support

      • MATLAB Coder: Suitable for basic embedded applications but lacks processor-specific optimization.
      • Simulink Coder: Supports embedded deployment but lacks compliance with stringent automotive standards.
      • Embedded Coder: Includes advanced features like fixed-point conversion, memory optimization, and AUTOSAR compliance.

      03. Compliance with Automotive Standards

        • MATLAB Coder: Does not comply with automotive coding standards.
        • Simulink Coder: Partially supports standards like MISRA but is not tailored for full compliance.
        • Embedded Coder: Fully supports ISO 26262, MISRA-C, and AUTOSAR, making it ideal for safety-critical automotive applications.

        Use Cases in Automotive Applications

        MATLAB Coder

        • Rapid prototyping of control algorithms.
        • Developing mathematical models and simulations.
        • Implementing basic embedded system applications.

        Simulink Coder

        • Model-based design and simulation of automotive control systems.
        • Hardware-in-the-loop (HIL) testing.
        • Generating code for real-time embedded applications.

        Embedded Coder

        • Developing production-grade automotive ECUs.
        • Generating highly optimized code for powertrain, ADAS, and safety systems.
        • Supporting AUTOSAR-compliant software development.

        Advantages and Disadvantages

        01. MATLAB Coder

        Pros:

        • Easy to use for MATLAB users.
        • Supports a wide range of algorithms.
        • Useful for rapid prototyping.

        Cons:

        • Not optimized for real-time automotive applications.
        • Limited hardware support.
        • No compliance with automotive safety standards.

        02. Simulink Coder

        Pros:

        • Facilitates model-based design.
        • Supports real-time simulation and testing.
        • Good integration with embedded systems.

        Cons:

        • The code is not highly optimized for production use.
        • Partial compliance with automotive standards.

        03. Embedded Coder

        Pros:

        • Highly optimized code for embedded applications.
        • Compliance with automotive safety standards.
        • Supports AUTOSAR and fixed-point conversion.

        Cons:

        • Steeper learning curve.
        • Higher computational requirements.

        Conclusion

        Choosing the right coder depends on the specific requirements of the automotive application. MATLAB Coder is best for algorithm development and rapid prototyping, Simulink Coder excels in model-based design, and Embedded Coder is ideal for production-quality embedded software. By understanding their differences, automotive engineers can make informed decisions to optimize their development workflow.

        This was about “Comparing Embedded Coder, Simulink Coder, And MATLAB Coder In Automotive Applications”. Thank you for reading.
