How To Manage Projects? Iterative, Agile, Waterfall, Spiral Model, RAD Model

Chetan Shidling

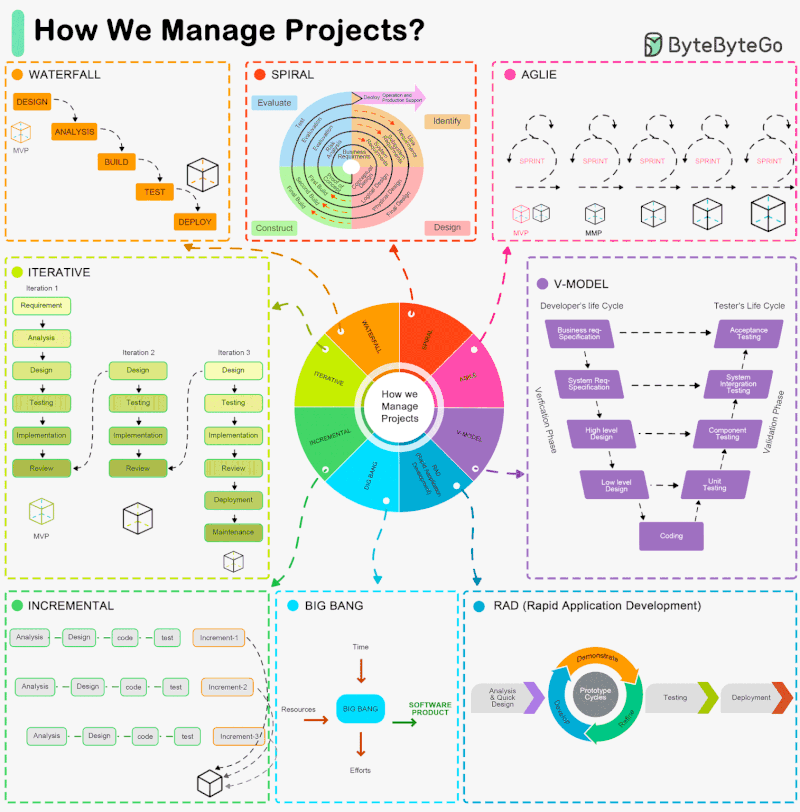

How To Manage Projects Iterative, Agile, Waterfall, Spiral Model, RAD Model.png

Hello guys, welcome back to our blog. Here in this article, we will discuss how to manage projects with the help of models such as the waterfall model, Agile model, V-model (validation and verification model), iterative model, spiral model, big bang model, RAD model, and incremental model.

Ask questions if you have any electrical,  electronics, or  computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics.

How To Manage Projects

A framework known as the Software Development Life Cycle (SDLC) describes the methodical and structured process of creating software. It offers an organized method for developing software, guaranteeing that the finished result will be of the highest caliber and satisfy customer needs. The software development life cycle (SDLC) comprises multiple discrete stages, which include planning, analysis, design, implementation, testing, deployment, and maintenance. The development team is guided from the initial concept to the software’s final deployment and continuous support by the distinct deliverables and objectives of each phase.

Iterative, Agile, Waterfall, Spiral Model, RAD Model

Organizations can increase project success rates, improve control over the development process, and improve project management by adhering to an SDLC model. The SDLC comes in a variety of models, each designed for a particular project type and development environment. The Waterfall, Agile, Iterative, and Spiral models are a few of the most widely used SDLC models. These models offer many strategies for addressing the difficulties and complexities involved in software development, enabling teams to select the strategy that best suits the requirements of their particular project.

01. Waterfall Model

One of the earliest and most conventional methods for developing software is the waterfall model. Each stage of the development process must be finished before moving on to the next in a sequential and linear manner. This model stands out for having a strict structure that distinguishes and characterizes each developmental stage. Requirements, Design, Implementation, Verification, and Maintenance are the main phases.

Detailed software specifications are acquired and recorded during the requirements phase. This stage is very important since it sets the groundwork for the entire project and makes sure that everyone involved knows exactly what the software is supposed to do. After gathering requirements, the system’s architecture and design specifications are developed during the design phase. Both low-level component design and high-level system design are involved in this stage.

After the design is complete, the software is actually coded and developed during the Implementation phase. Code is written by developers using the design papers as a guide to make sure every part works as it should. The Verification step, which follows implementation, entails extensive testing to find and address any problems or defects. Testing verifies that the program satisfies the requirements and operates as intended under a variety of conditions.

Following software deployment, maintenance is the last stage and entails continuing support and updates. This stage fixes any problems that arise after the software is released, applies any updates that are required, and ensures the program stays current and useful over time. Since the Waterfall model’s inflexible structure makes it difficult to adapt to changes once the project is underway, it works best for projects with clearly specified needs and few anticipated changes.

  • Linear and Sequential Approach: The Waterfall Model is a strictly sequential process that requires the completion of each phase prior to the start of the next.
  • Phases: It breaks the project down into discrete stages, each with particular targets and goals: requirements, design, implementation, verification, and maintenance.
  • Documentation: To guarantee precise and thorough project directions, a great deal of documentation is needed at every stage.
  • Suitability: Ideal for projects with clear needs that are unlikely to alter while being developed.
  • Rigidity: This can be a major disadvantage since it is hard to adapt to changes once the project is underway due to its rigidity and lack of flexibility.

02. Agile Model

The Agile model is an adaptable and iterative software development methodology that prioritizes customer feedback, teamwork, and the quick delivery of manageable, compact product increments called sprints. Agile approaches, in contrast to the Waterfall paradigm, enable constant modification and enhancement during the development process, which makes them perfect for projects with changing requirements.

Within Agile, development teams operate in brief intervals, known as sprints, that usually last between one and four weeks. At the planning meeting at the start of each sprint, the team decides which features or tasks will be finished in that particular sprint. Every day, stand-up meetings are conducted to assess the team’s work and resolve any issues, promoting a cooperative atmosphere that allows members to adjust to changes promptly.

Extreme Programming (XP), Scrum, and Kanban are examples of common Agile approaches. At the conclusion of each sprint, Scrum prioritizes delivering a potentially shippable product increment, with responsibilities like Product Owner, Scrum Master, and Development Team clearly defined. With Kanban, however, the workflow is visualized through a Kanban board, stressing continuous delivery and minimizing work-in-progress. XP promotes techniques like pair programming and test-driven development and places a strong emphasis on technical excellence and continuous integration.

Because agile is iterative, stakeholders and end users can provide input on a frequent basis, which guarantees that the product will change to fit their demands. This method lowers the chance of creating features that might end up being superfluous or out of date because changes can be made in response to input received in real-time. Agile is especially well-suited for complicated and dynamic projects where success depends on flexibility and quick change response.

  • Iterative Development: The core principle of agile development is iterative development using tiny, manageable units called sprints, which are usually completed in one to four weeks.
  • Flexibility: Agile development methods are incredibly adaptable, enabling modifications to requirements even at the very end of the project.
  • Close cooperation between team members and stakeholders is emphasized, along with frequent evaluations and feedback.
  • Methodologies: Consists of several approaches with distinct methods and tenets, including Extreme Programming (XP), Scrum, and Kanban.
  • Continuous Improvement: Ensures continual improvements to the process and product by promoting continuous improvement through frequent sprint retrospectives and adaptive planning.

03. V-Model (Validation and Verification Model)

The Validation and Verification Model, or V-Model, is an addition to the Waterfall model that highlights how crucial testing is at every level of the development process. The V-Model is distinguished by its V-shaped structure, which ensures that validation and verification take place continuously throughout the project by matching each development step with a comparable testing phase.

The needs are broken down and system specifications are created on the left side of the V, while the integration and validation of these requirements occur on the right side. Requirements analysis, system design, and architectural design are the phases on the left. Unit testing, integration testing, system testing, and acceptance testing are the phases that follow on the right.

The functional and non-functional needs of the system are obtained and recorded during the requirements analysis phase. The following stages of design are guided by these needs. The general system architecture is established during the System Design phase, outlining the interactions between various components. The system is further divided into modules or components and their particular designs are detailed during the Architectural Design phase.

Testing is directly connected to each design process to make sure the system satisfies the requirements. While system testing validates the system as a whole against the requirements, acceptance testing makes sure the system satisfies the demands of end users. Unit testing verifies individual components. Integration testing examines the relationships between components. The V-Model is appropriate for projects where high dependability and quality are crucial because of its organized approach, which guarantees thorough validation and verification.

  • Extension of Waterfall: With a focus on validation and verification at every level of development, the V-paradigm is an expansion of the Waterfall paradigm.
  • Phase Correspondence: Every development phase has a V-shaped corresponding testing phase that guarantees early defect detection.
  • Methodical Approach: Offers a methodical approach to testing, guaranteeing that the deliverables of each phase are verified before proceeding to the next.
  • Improves quality assurance by including testing in the entire development process.
  • Inflexibility: This paradigm is susceptible to rigidity and may find it difficult to adapt to changes once the development process has commenced, much like the Waterfall model.

04. Iterative Model

The goal of the iterative model is to gradually create a system through a series of cycles, or iterations, where each one builds on the one before it to produce the desired outcome. Through numerous iterations, this methodology enables the program to be improved and expanded, accommodating any changes or new needs that may emerge throughout the development process.

Planning, designing, implementing, testing, and evaluating are usually included in each iteration. A basic implementation of a portion of the software requirements is the first step in the process, and it is tested and assessed. For the following iteration, the requirements and design are improved upon using the feedback from this phase. This cycle keeps going until the entire system is created and every need is satisfied.

Early in the development process, risks can be identified and addressed thanks to the Iterative Model’s methodology. Additionally, it makes it possible to include customer feedback in the development cycle, guaranteeing that the evolving product satisfies user needs and expectations. The model gives stakeholders access to a working version of the product at the conclusion of each iteration, allowing them to examine and offer input.

For large, complicated projects where it is challenging to specify all requirements up front, this strategy is especially helpful. Since it can adapt to changes, its adaptability makes it the best option for projects whose requirements change over time. In order to guarantee that every iteration is successfully included in the finished result, managing iterative processes necessitates meticulous preparation and communication.

  • The goal of incremental development is to create the system in small steps via repeating cycles, or iterations, where each builds on the one before it.
  • Phases of Each Iteration: Planning, design, implementation, testing, and assessment are all included in each iteration to enable frequent improvements.
  • User Feedback: To make sure the developing product lives up to user expectations, it is encouraged to incorporate customer feedback at every iteration.
  • Risk management: Through iterative improvements, it assists in identifying and addressing risks early in the development process.
  • Flexibility: Able to adapt to changes throughout development, this attribute makes it suitable for large, complicated projects with changing requirements.

05. Spiral Model

Iterative development and the methodical elements of the Waterfall model are combined in the Spiral Model. By including risk analysis and management at each spiral or iteration, it is intended to control risks. The methodology comprises four primary phases that are repeated in each spiral until the project is finished: planning, risk analysis, engineering, and evaluation.

The goals, options, and limitations for the iteration are established during the planning stage. The phase of risk analysis looks for potential dangers and investigates ways to mitigate them. At the same time, the evaluation phase evaluates the product and the process and provides input for the next iteration, the engineering phase deals with the actual development and testing of the product.

The Spiral Model is appropriate for large, complicated, and high-risk projects because of its emphasis on risk management. The model assists in averting significant problems later in the development process by recognizing and resolving risks at an early stage. Every spiral builds on the one before it, enabling ever better and more refined results.

At every iteration, modifications, and new requirements can be added because of the Spiral Model’s flexibility. However, managing the model can be challenging and calls for a high degree of project management and risk analysis experience. It is an effective tool for managing uncertain and high-stakes projects because of its iterative nature and emphasis on risk management.

  • Combines Models: With an emphasis on risk management, this approach combines the methodical elements of the Waterfall model with iterative development.
  • Phases of Spirals: Until the project is finished, Planning, Risk Analysis, Engineering, and Evaluation are performed in each cycle, or spiral.
  • The goal of risk management is to lower the possibility of significant problems by recognizing and resolving risks early in each cycle.
  • It is possible to make little adjustments and enhancements with this method, which guarantees that the product will go through each spiral.
  • Complexity and knowledge: This approach is appropriate for projects that are huge, complicated, and high-risk, but it does demand a high degree of project management and risk analysis knowledge.

06. Big Bang Model

The Big Bang Model is a straightforward and frequently unstructured method of developing software that emphasizes intensive coding over little planning. In this strategy, all work is concentrated on the coding, based on the idea that needs will become evident as the project develops. At the end of the development phase, the entire software is integrated and tested once.

The Big Bang Model works well for small or experimental projects whose requirements are unclear because of its lack of formal structure and planning. It spares developers from having to spend a lot of time on the preliminary stages of planning and design and lets them get right into coding. This may be helpful if the development team is small and very competent, and the project scope is flexible.

However because it requires final integration and testing and has little planning, the Big Bang Model has a lot of risks. Problems and flaws are frequently found after the fact, which can cause a great deal of rework and delays. Furthermore, if requirements are not clearly understood, the finished product might not satisfy user demands or business objectives.

The Big Bang Model is typically not advised for larger, more complex projects, even though it might be helpful for tiny, proof-of-concept projects or for experimenting with new technologies. The likelihood of a project failing rises when there is little planning and structure, which makes it harder to manage and control.

  • Minimal Planning: Concentrates on writing a lot of code and jumping right into development with little to no preliminary planning.
  • Testing and Integration: At the conclusion of the development phase, the entire software is tested and integrated once.
  • Flexibility for Small Projects: Ideal for experimental or small-scale projects where requirements are first unclear.
  • High Risk: Contains a great deal of risk because of inadequate planning and delayed flaw discovery, which frequently necessitates extensive rework.
  • Unsuitable for Big Projects: Because of the risk of serious problems and project failure, it is usually not advised for bigger, more complicated projects.

07. RAD Model (Rapid Application Development)

Rapid prototyping and prompt feedback are prioritized over meticulous planning and protracted code cycles in the RAD Model. Accelerating the development process and producing a working product rapidly are the main goals of Rapid Application Development (RAD), where development efforts are guided by continuous user feedback. This paradigm is especially helpful in settings where regular changes in needs are anticipated.

The development process is broken down into manageable chunks by the RAD Model and is then cycled through phases of testing, prototyping, and refinement. These prototypes are made fast, and after being tested by users, the results are used to improve and perfect the final product. This methodology guarantees that the end product closely conforms to the requirements and expectations of the user.

Improved communication and cooperation between developers and users are fostered by the RAD Model, which promotes active user involvement throughout the development process. This ongoing feedback loop lowers the possibility of expensive revisions and rework later in the development cycle by assisting in the early identification and resolution of issues. Organizations may also react swiftly to market developments and new opportunities because of the emphasis on rapid development and delivery.

The RAD Model does, however, call for a high degree of user involvement and dedication, which isn’t always possible. It also necessitates a development team that is knowledgeable and flexible enough to function in a hectic setting. The RAD Model works well for projects with dynamic requirements and short schedules, but it might not be appropriate for tasks including formal processes and a lot of documentation.

  • Rapid prototype: Prioritises immediate feedback and rapid prototype over lengthy planning and coding cycles.
  • User Involvement: Promotes proactive user participation and ongoing input to direct development.
  • Rapid Development: This approach, which is appropriate for projects with strict deadlines and changing needs, focuses on rapid development and delivery.
  • Iterative Refinements: This process involves testing, prototyping, and refinement iteratively to make sure the finished product meets user needs.
  • User dedication: Needs a highly trained, flexible development team and a high degree of user dedication and involvement, which may not always be possible.

08. Incremental Model

Under the incremental model, a product is developed, tested, and put into use piecemeal until the system as a whole is finished. Early in the development process, the system can be partially implemented thanks to the addition of functional components to the software with each increment. This method offers a balance between structured and flexible development by incorporating aspects of both waterfall and iterative development methodologies.

The development process is broken down into more manageable, smaller modules, or increments, according to the Incremental Model. Every iteration goes through the entire development cycle, which consists of planning, designing, implementing, testing, and reviewing. An increment becomes progressively more functional when it is combined with the earlier produced increments once it is finished.

Delivering a functional version of the program early in the development phase is the primary benefit of the incremental model. By doing this, stakeholders may make sure the finished product lives up to their expectations by reviewing and offering input on the half-completed version. This strategy also lowers total risk by concentrating on more manageable, smaller functional components.

Projects with complicated requirements that may be divided into smaller, independent components benefit greatly from the incremental model. It is appropriate for projects where requirements are anticipated to change over time because it enables adaptable responses to shifting priorities and requirements. Planning and coordination are necessary to ensure the smooth integration of multiple increments, which can be difficult to manage.

  • Incremental Development: Functional components are added to the product with each iteration as it is developed, implemented, and tested.
  • Early Delivery: Provides early visibility and possibilities for feedback by enabling the early delivery of a system that is only partially functioning.
  • Increment Phases: Every increment goes through all of the stages of the development cycle, which include planning, designing, implementing, testing, and reviewing.
  • Risk reduction: Lowers overall risk by concentrating on more controllable, smaller functional components that enable early problem discovery.
  • Flexibility: Fit for tasks requiring intricate needs that can be divided into more manageable, standalone parts, providing room for modifications.

This was about “How To Manage Projects”. Thank you for reading.
