Overview Of Wiring Harnesses In Electric Vehicles

Hello guys, welcome back to our blog. Here in this article, we will discuss wiring harnesses in electric vehicles, the steps to do wiring harnesses, and their components.

Ask questions if you have any electrical, electronics, or computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics

Wiring Harnesses In Electric Vehicles

01. What is a Wiring Harness?

The wiring harness in an electric vehicle (EV) is like the vehicle’s nervous system, connecting all the components to ensure smooth power delivery and communication. It consists of wires, connectors, and protective sheaths that carry power and data signals across the vehicle. In EVs, the wiring harness plays a critical role due to the need for high-voltage power distribution and complex data communication between components like the battery, motor, and sensors.

This system ensures that power flows seamlessly from the battery to the motor while enabling ECUs and sensors to exchange vital information. Unlike in traditional vehicles, EV wiring harnesses must meet stringent safety and performance standards to handle the higher currents and voltages involved. Proper insulation, grounding, and shielding are key features to ensure efficiency and safety in operations.

Key Features of EV Wiring Harness:

High-voltage cables for power transfer.
Low-voltage cables for signal communication.
Protective sheathing against heat, moisture, and vibration.
EMI shielding to prevent signal interference.
Modular design for easier assembly and maintenance.

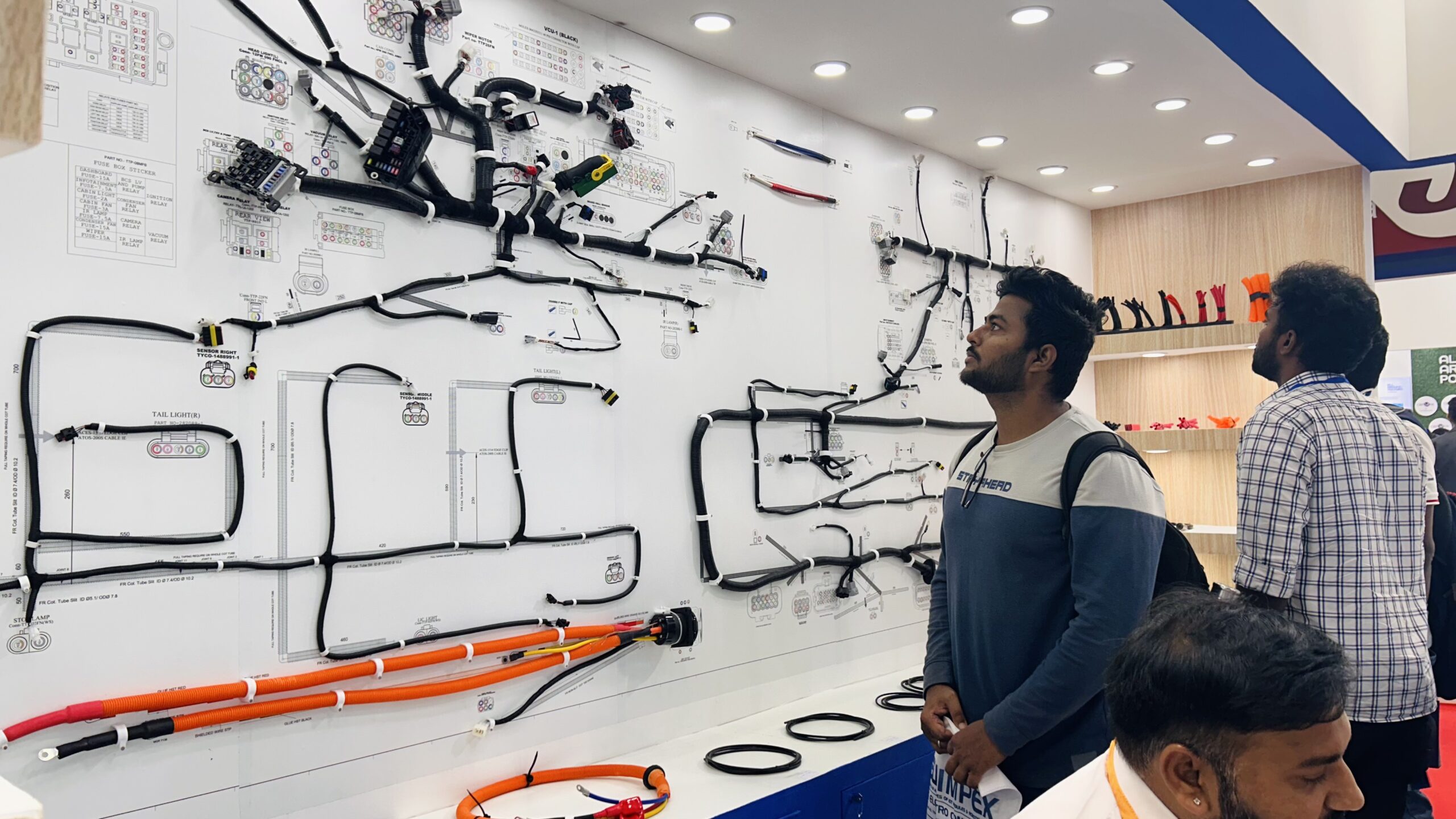

02. Key Components of a Wiring Harness

A wiring harness is made up of several essential components, each tailored for a specific purpose. High-voltage cables transmit power from the battery to the motor and other powertrain components. Low-voltage wires connect sensors, controllers, and auxiliary systems like infotainment and lighting. Both require robust insulation to ensure safety and durability.

Connectors serve as secure junctions between wires and components, ensuring reliable operation even under vibrations and extreme conditions. Fuses and relays protect the circuits from overcurrent and short circuits, while protective sheathing and braided sleeves offer physical and thermal protection. Terminal blocks simplify connections, making the harness more serviceable.

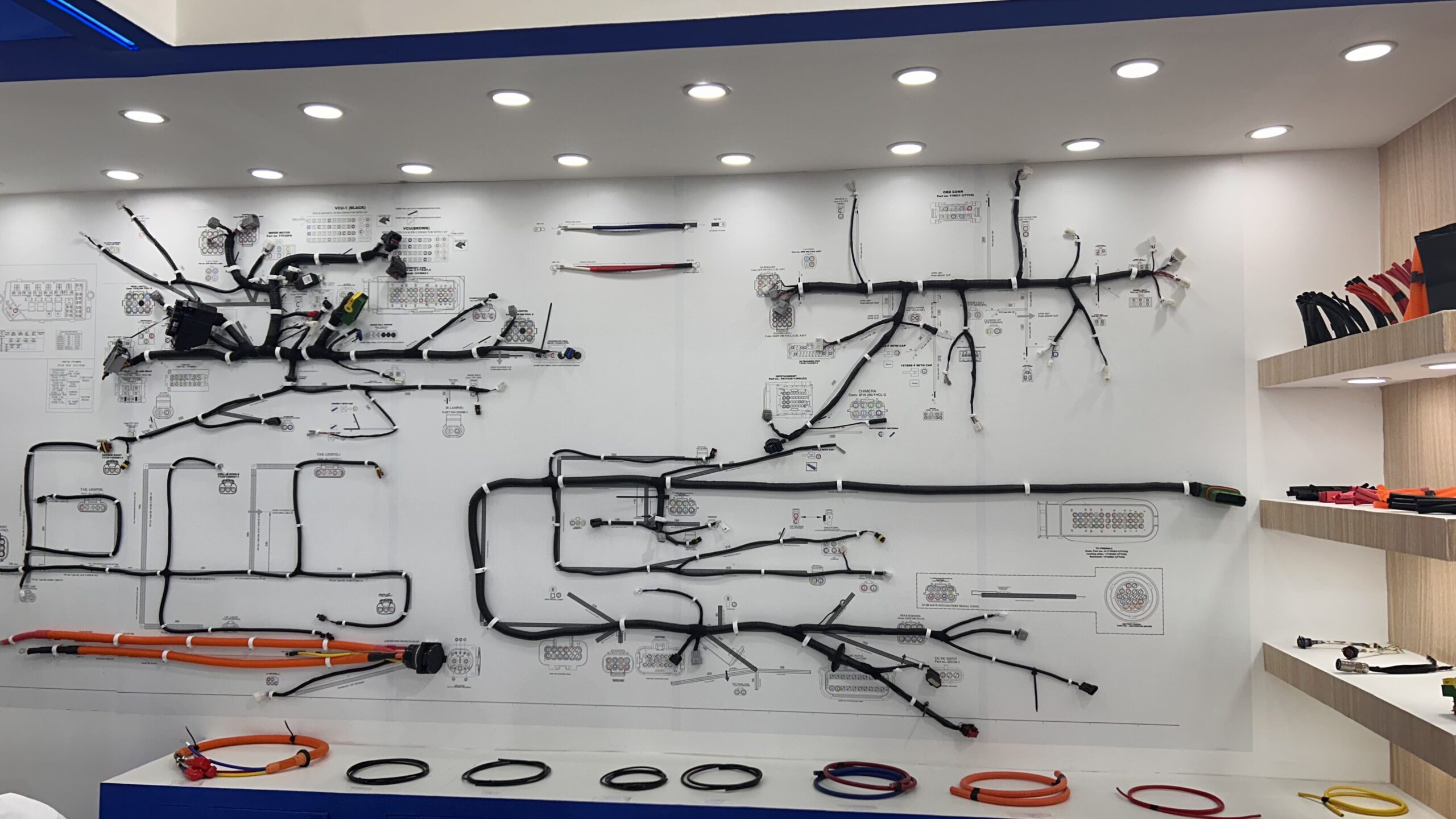

Main Components of an EV Wiring Harness:

High-voltage cables: For power transmission.
Low-voltage cables: For data signals and auxiliary systems.
Connectors: Secure junctions between wires and components.
Fuses and relays: For overcurrent protection.
Protective sheathing: Guards against physical and thermal damage.

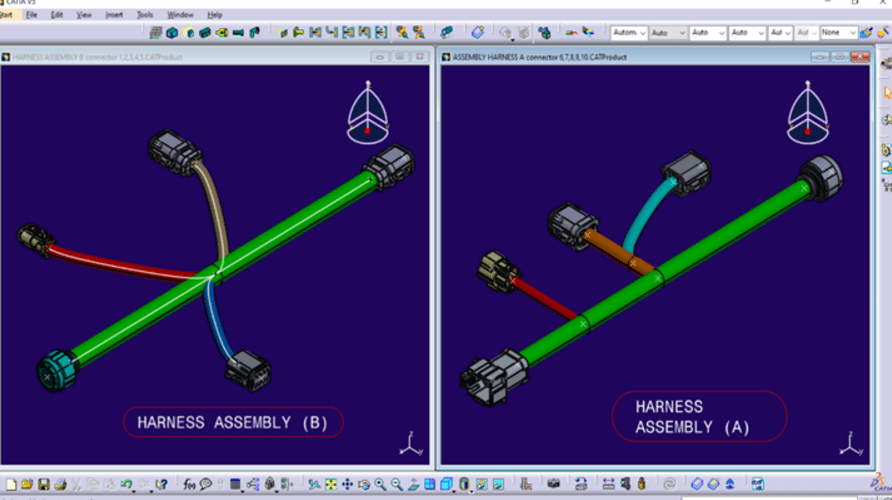

03. Steps to Design a Wiring Harness

Designing a wiring harness involves a systematic approach to ensure efficiency, reliability, and safety. The process begins with analyzing the vehicle’s electrical architecture to identify power and signal requirements. Engineers create wiring diagrams using tools like CATIA or Zuken, mapping the connections between components.

Once the layout is finalized, materials like wires, connectors, and insulation are selected based on the application. The harness is then routed within the vehicle to minimize length and weight while avoiding sharp bends and potential wear points. After assembly, rigorous testing is conducted to validate the design under various conditions.

Steps in Wiring Harness Design:

Analyze the EV architecture and power/signal requirements.
Create wiring diagrams using design tools.
Select appropriate wires, connectors, and insulation materials.
Optimize routing for safety, efficiency, and ease of assembly.
Test for continuity, insulation resistance, and thermal performance.
This structured process ensures the harness not only meets technical specifications but also adheres to the highest safety and quality standards.

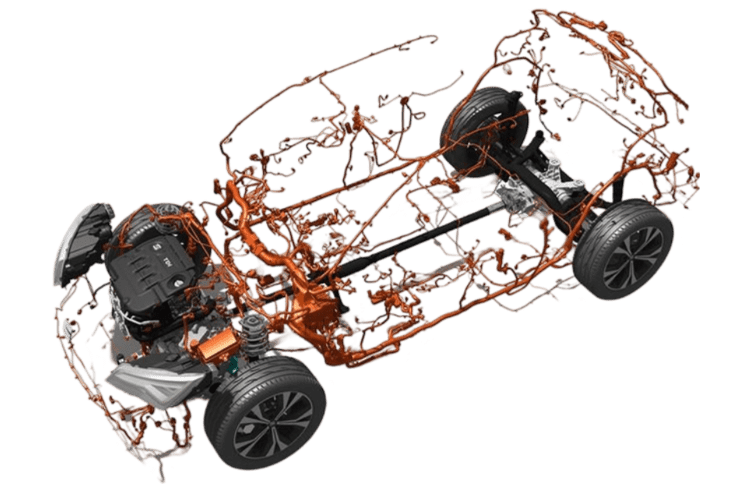

04. Wiring Harness Layout in EVs

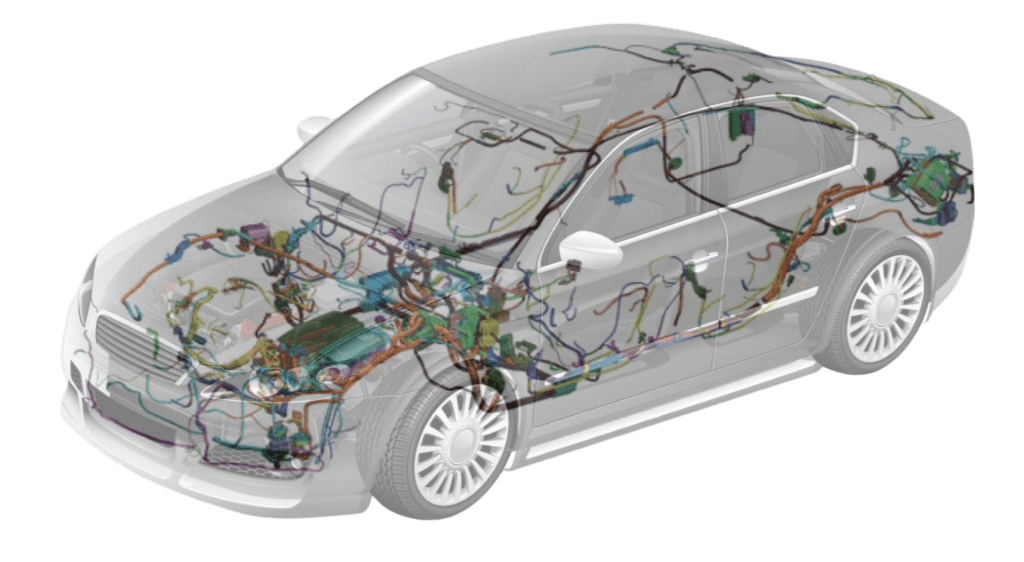

The layout of a wiring harness in an EV is strategically designed to ensure efficient power distribution and effective signal communication. It consists of three main subsystems: the high-voltage system, the low-voltage system, and the communication system. The high-voltage system connects the battery pack to components like the inverter, motor, and charging port, carrying significant power.

The low-voltage subsystem supports auxiliary functions such as lighting, infotainment, and HVAC systems. Meanwhile, the communication harness links ECUs, sensors, and controllers through CAN, LIN, or Ethernet protocols. A well-planned layout minimizes wire length, reduces weight, and enhances electromagnetic compatibility (EMC) while maintaining safety and serviceability.

Features of a Good Layout:

Segregation of high and low-voltage circuits for safety.
Optimized wire length to minimize resistance and weight.
Proper shielding to prevent electromagnetic interference.
Easy access for assembly and maintenance.
Clear color coding for wire identification.

05. Manufacturing Process

Manufacturing a wiring harness is a meticulous process that ensures each component is correctly assembled and tested for reliability. The process starts with cutting wires to precise lengths, stripping their insulation, and crimping terminals onto the ends. Wires are then bundled based on their routing paths and secured using tapes, ties, or protective sleeves.

After assembly, the harness undergoes extensive testing to verify its integrity. Continuity tests ensure all connections are functional, insulation resistance tests confirm no leakage currents and voltage drop tests validate performance under load. Only after passing these quality checks is the harness ready for integration into the vehicle.

Key Manufacturing Steps:

Wire cutting, stripping, and terminal crimping.
Bundling wires into groups for specific paths.
Securing with ties, tapes, or sleeves for protection.
Testing for continuity, insulation, and voltage drops.
Packaging and delivery for vehicle assembly.

06. Challenges in EV Wiring Harness

Designing and manufacturing wiring harnesses for EVs comes with unique challenges. High-voltage systems require robust insulation and precise routing to ensure safety. Engineers must also address thermal management, as high currents generate significant heat that can degrade wires and insulation.

Additionally, reducing the weight of the harness is critical for improving vehicle efficiency. This often involves using lightweight materials like aluminum instead of copper. Another challenge is ensuring electromagnetic compatibility (EMC), which requires advanced shielding techniques to prevent interference with the vehicle’s sensitive electronics.

Challenges to Overcome:

Ensuring safety in high-voltage systems.
Managing heat generated by high currents.
Reducing weight through lightweight materials.
Achieving electromagnetic compatibility (EMC).
Meeting cost and production efficiency targets.

07. Innovations in EV Wiring Harness

Innovations in EV wiring harnesses are driving significant advancements in performance and efficiency. One such innovation is flat wiring technology, which replaces traditional round wires with thin, flat wires. This reduces weight, improves energy efficiency, and saves space, making it ideal for compact EV designs. Another breakthrough is the modular harness design, which simplifies assembly and maintenance by allowing different sections of the harness to be pre-assembled and easily connected.

The use of lightweight materials like aluminum is also gaining traction to replace heavier copper wires. Additionally, high-voltage distribution units (HVDUs) are streamlining power management by centralizing high-voltage connections. These advancements are not only improving vehicle efficiency but also reducing production costs and enhancing safety.

Recent Innovations:

Flat wiring technology for weight and space savings.
Modular harness designs for easier assembly.
Aluminum wires to replace heavier copper alternatives.
High-voltage distribution units for centralized power management.
Enhanced EMI shielding to improve reliability.

08. Practical Tips for EV Wiring Harness Design

Designing a wiring harness for EVs requires careful attention to detail to ensure safety, reliability, and efficiency. Engineers should use wires rated for the high-voltage and high-current demands of EVs, with robust insulation to withstand heat, vibration, and moisture. Routing should avoid sharp bends and friction points to prevent wear over time.

Simulation tools like CATIA or Zuken can help engineers predict thermal and electrical behavior, enabling better design decisions. Additionally, implementing clear color coding for wires and standardized connectors simplifies installation and maintenance. Following these tips ensures that the wiring harness supports the EV’s performance and longevity.

Tips for Effective Design:

Use wires and insulation rated for EV-specific conditions.
Avoid sharp bends and potential wear points in routing.
Utilize simulation tools for thermal and electrical analysis.
Employ clear color coding for easy identification.
Standardize connectors for easier assembly and repairs.

09. Tools and Software for Wiring Harness Design

Modern software tools play a vital role in simplifying the design of complex wiring harnesses for EVs. Tools like CATIA Electrical Design enable engineers to create detailed 3D models and route the harness efficiently within the vehicle’s architecture. Zuken E3.series specializes in schematic creation and ensures accurate representation of wiring connections.

For electrical analysis, tools like AutoCAD Electrical and Mentor Capital help visualize and optimize circuits. These platforms also assist in detecting potential issues like overloading or short circuits before production. By using these advanced tools, engineers can significantly reduce design time and improve accuracy, leading to better overall product quality.

Top Tools for Harness Design:

CATIA Electrical Design: For 3D modeling and routing.
Zuken E3.series: For schematic diagrams and layouts.
AutoCAD Electrical: For detailed electrical analysis.
Mentor Capital: For managing large-scale projects.
SolidWorks Electrical: For collaborative harness designs.

10. Testing and Validation

The testing and validation process is crucial to ensure the wiring harness meets safety and performance standards. Continuity testing verifies that all electrical connections are correctly established, while insulation resistance testing ensures there are no leakage currents. High-voltage testing simulates real-world operating conditions, confirming the harness can safely handle its intended load.

Additional tests, such as thermal and vibration testing, assess the harness’s durability under harsh environments. Electromagnetic compatibility (EMC) testing ensures the harness doesn’t interfere with other sensitive vehicle electronics. This rigorous testing process guarantees a reliable product that meets the demands of modern EVs.

Key Tests for Validation:

Continuity testing for functional connections.
Insulation resistance testing to prevent leakage.
High-voltage testing for operational safety.
Thermal and vibration testing for durability.
EMC testing to avoid electronic interference.

Conclusion

The wiring harness is the lifeline of any electric vehicle, seamlessly integrating power distribution and communication between critical components. As EV technology continues to evolve, the complexity of wiring harnesses grows, demanding innovative designs, lightweight materials, and advanced manufacturing techniques. From high-voltage power transfer to precise signal communication, the wiring harness ensures efficiency, safety, and reliability, forming the backbone of the vehicle’s electrical architecture.

Engineers and manufacturers are continuously overcoming challenges like electromagnetic interference, weight reduction, and thermal management. The incorporation of advanced tools, modular designs, and rigorous testing methodologies ensures that wiring harnesses can meet the stringent demands of modern EVs while paving the way for future innovations.

As electric vehicles drive us toward a sustainable future, wiring harnesses will remain a cornerstone of this transformation, empowering the next generation of cleaner, smarter, and more efficient transportation solutions. 🌍⚡

#ElectricVehicles #WiringHarness #EVInnovation #SustainableFuture #Engineering

This was about “Wiring Harnesses In Electric Vehicles“. Thank you for reading.
