Induction Motor Braking Capacitor Based In MATLAB Simulink

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

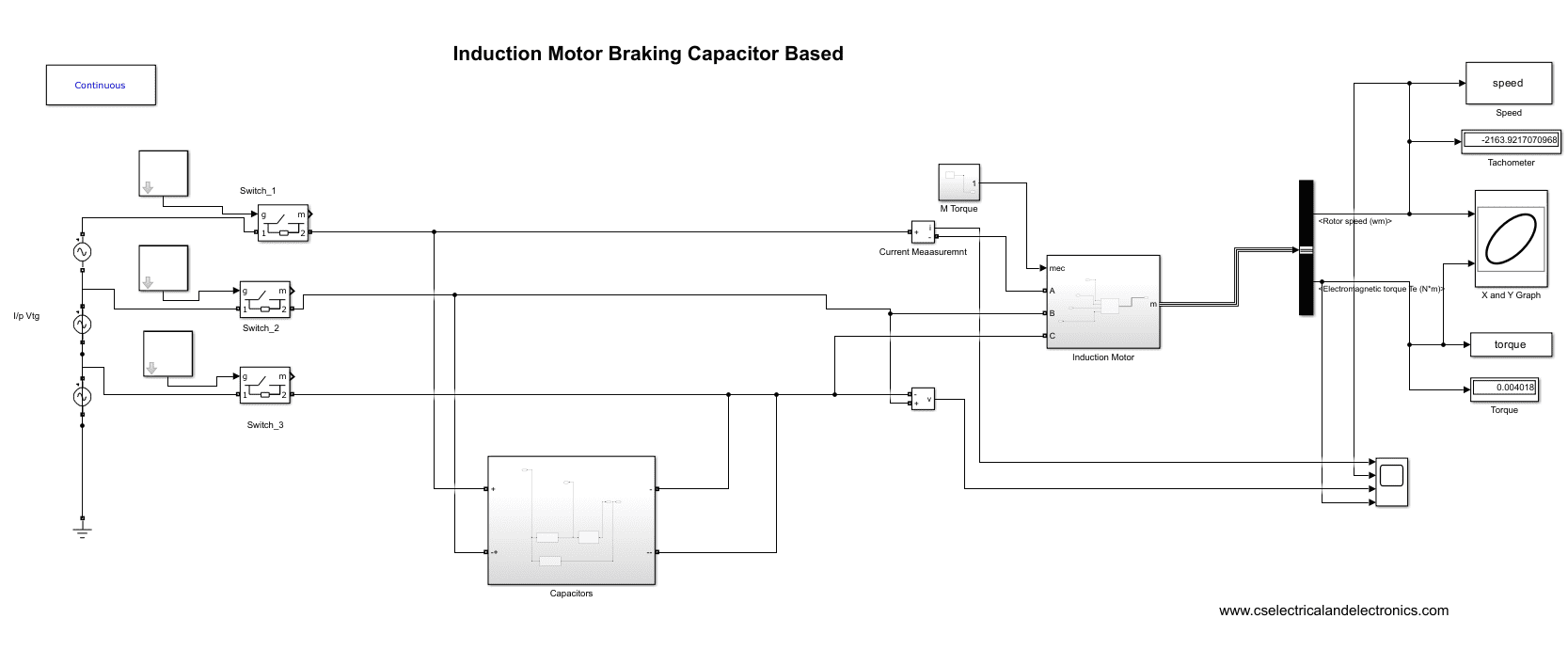

Hello guys, in this zip file, you will find the Matlab Simulink model on Capacitor based braking of the Induction motor.



Induction motor braking using a capacitor is a common method used to quickly stop the motor’s rotation. When the power to an induction motor is turned off, the motor continues to rotate due to the inertia of the rotor. In some applications, it is necessary to stop the motor quickly, such as in a conveyor belt or other industrial equipment.

The use of a capacitor in induction motor braking is based on the fact that the capacitor creates a phase shift between the voltage and current in the motor winding. This phase shift causes the motor to produce a rotating magnetic field in the opposite direction to the normal rotation. The opposing magnetic field creates a braking torque that quickly stops the rotor’s rotation.

To use a capacitor for induction motor braking, a circuit is added to the motor that includes a capacitor and a switch. When the power to the motor is turned off, the switch is closed, and the capacitor is connected to the motor winding. The capacitor causes a phase shift, which creates the opposing magnetic field and the braking torque.

It is important to note that the size of the capacitor used for braking depends on the size and type of the motor. A capacitor that is too large can cause excessive voltage stress on the motor winding and lead to insulation failure. On the other hand, a capacitor that is too small may not provide enough braking torque to stop the motor quickly.

Overall, induction motor braking using a capacitor is an effective method for quickly stopping a motor’s rotation. It is important to properly size the capacitor and ensure that the circuit is designed correctly to prevent any damage to the motor or other equipment.
