Microcontrollers in Automotive ECUs

As vehicles continue to evolve from mechanical machines to highly intelligent, software-driven systems, the role of microcontrollers (MCUs) in Electronic Control Units (ECUs) becomes increasingly critical. Every function, from starting the engine to adaptive cruise control, is governed by sophisticated ECUs powered by microcontrollers. With the automotive industry pushing boundaries in electrification, autonomous driving, and connected mobility, choosing the right microcontroller architecture has become a strategic decision for OEMs and Tier-1 suppliers.

This article explores the various types of microcontrollers used in ECUs, dives deep into their applications, and analyzes the most dominant players in this high-stakes market.

What is a Microcontroller and ECU?

An Electronic Control Unit (ECU) is a computer embedded in vehicles to control one or more of the electronic systems or subsystems. These systems include the engine, transmission, brakes, airbags, infotainment, and Advanced Driver Assistance Systems (ADAS).

A microcontroller (MCU) is a compact integrated circuit designed to govern a specific operation in an embedded system. In the context of automotive ECUs, MCUs are responsible for processing inputs from sensors, executing control algorithms, and sending outputs to actuators in real time.

Classification of Microcontrollers Used in ECUs

Microcontrollers are selected based on the complexity and safety requirements of the function they are controlling. Here’s a breakdown:

8-bit Microcontrollers

Application: Window lifters, seat positioning, HVAC fans
Features: Low processing power, low cost, minimal memory
Examples: Microchip PIC, Atmel AVR
Use Case: Primarily in non-critical, low-power applications

16-bit Microcontrollers

Application: Transmission systems, temperature control, wiper systems
Features: Balanced performance and cost, suitable for medium-complexity systems
Examples: Renesas RL78, TI MSP430
Use Case: Efficient for applications needing better real-time control than 8-bit MCUs

32-bit Microcontrollers

Application: Engine control, braking (ABS/ESC), powertrain, steering, ADAS
Features: High processing speed, better memory capacity, scalable architecture
Examples: Infineon AURIX, NXP S32K, Renesas RH850
Use Case: Backbone of modern ECUs requiring real-time processing, secure communication, and functional safety compliance

Multicore Microcontrollers

Application: EV control units, domain controllers, central vehicle computers
Features: Multiple cores (lockstep/core diversity), high-speed bus systems, virtualization support, ASIL-D capability
Examples: Infineon AURIX TC3xx, NXP S32G
Use Case: Required for autonomous vehicles and zonal architectures where performance and redundancy are key

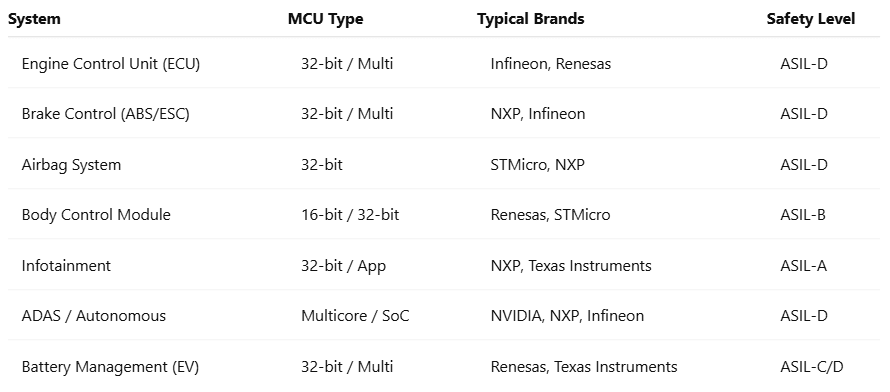

Key Applications of Microcontrollers in ECUs

Each major system in a vehicle relies on specific microcontrollers tailored for its operational and safety needs:

Leading Brands in Automotive Microcontrollers

Let’s explore the top MCU vendors that dominate the automotive landscape:

01. Infineon Technologies

Series: AURIX™ TC2xx / TC3xx
Strengths: High-end safety (ASIL-D), multiple cores, ECC-protected memories, hyperbus interface, dedicated peripherals for motor control
Applications: Powertrain, ADAS, autonomous driving, EVs
Market Position: Leader in safety-critical applications

02. NXP Semiconductors

Series: S32K, S32G
Strengths: Software scalability, functional safety, automotive-grade Ethernet, security modules
Applications: Networking ECUs, domain control, ADAS, gateways
Market Position: Strong in vehicle networking and zonal architectures

03. Renesas Electronics

Series: RH850, R-Car
Strengths: Functional safety packages, low power consumption, integrated flash memory, real-time control
Applications: Powertrain, body control, HEV/EV systems
Market Position: Known for robust and scalable solutions

04. STMicroelectronics

Series: SPC5, STM32
Strengths: Cost-effective, scalable for both body electronics and infotainment
Applications: Body control modules, infotainment, dashboard clusters

05. Texas Instruments (TI)

Series: C2000, TMS570
Strengths: Real-time control, advanced PWM, low latency, safety diagnostics
Applications: BMS, traction inverters, safety systems

06. Microchip Technology

Series: dsPIC, PIC32
Strengths: Low-cost, high integration, small footprint
Applications: Entry-level body control, diagnostics tools, small-scale modules

The Rise of Zonal and Domain Controller Architectures

The automotive industry is rapidly moving toward software-defined vehicle architectures. This transition has led to the rise of:

Domain Controllers: Responsible for centralized control of a specific vehicle domain (e.g., ADAS, powertrain, infotainment)
Zonal Controllers: Manage all ECUs in a geographic zone of the vehicle and communicate with the central compute unit

These architectures require high-end multicore MCUs or even SoCs (System-on-Chip), which are evolving to blend traditional MCU capabilities with AI acceleration and Ethernet-based communication.

Microcontroller Selection Criteria for Automotive ECUs

When selecting an MCU for automotive use, engineers consider:

ASIL Compliance (A to D): Required for safety-critical systems
Processing Power: Real-time performance, latency, core frequency
Memory and Storage: RAM, Flash, EEPROM needs
Communication Interfaces: CAN, LIN, FlexRay, Ethernet, SPI, I2C
Power Efficiency: Crucial for EVs and hybrid systems
Functional Safety and Security Features: ECC memory, watchdogs, secure boot

Future Trends in Automotive MCUs

Software-Defined Vehicles: MCUs are evolving to support OTA updates, virtual ECU partitioning, and cross-domain compute
AI Integration: Advanced MCUs now come with AI/ML capabilities for object detection, predictive diagnostics
Increased Safety Requirements: Moving towards universal ASIL-D systems even in previously low-risk zones
Cybersecurity: Enhanced hardware security modules (HSMs) to combat cyberattacks
Green Computing: Low-power MCU designs for sustainability and energy efficiency in EVs

Conclusion

Microcontrollers are the silent workhorses of automotive ECUs. As vehicles become more connected, autonomous, and electrified, the demand for powerful, safe, and efficient MCUs continues to rise. Brands like Infineon, NXP, and Renesas lead this transformation with their automotive-grade MCUs that deliver high reliability and scalability.

From simple door control units to the brains of autonomous systems, microcontrollers are driving the future of mobility. Choosing the right MCU can mean the difference between a vehicle that just runs and one that excels in performance, safety, and user experience.

This was about “Understanding Microcontrollers in Automotive ECUs: Types, Applications, and Industry Leaders“. Thank you for reading.
