What Is ISR (Interrupt Service Routine), Working

Chetan Shidling
What Is ISR (Interrupt Service Routine), Working

Hello guys, welcome back to our blog. Here in this article, I will discuss ISR (Interrupt Service Routine) in embedded systems, its working, and the purpose of ISR.

Ask questions if you have any electrical,  electronics, or computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics.

A key idea in real-time computing and embedded systems is the Interrupt Service Routine (ISR). It is a specific kind of subroutine made to deal with events that are brought on by interrupts, either software- or hardware-related. The main program is momentarily stopped to handle the event that triggered the interrupt, which are signals generated by hardware or software indicating the need for attention. ISRs are essential for making sure that actions that are time-sensitive are completed effectively and quickly, preserving the responsiveness and dependability of the system.

An interrupt handler’s main function is to handle hardware interrupts by carrying out a predetermined set of instructions that are unique to the interrupt occurrence. The CPU stops working on an interrupt, stores its state, and hands over control to the interrupt handler (ISR). The ISR then carries out the required tasks, including resolving an error condition, processing a communication event, and reading data from a sensor. The interrupt service routine (ISR) ensures the smooth continuation of regular activities by restoring the processor’s state and restarting the interrupted program after completing its work.

ISRs must be executed fast and efficiently in order to minimize the disturbance to the main program’s flow. ISRs are usually written in optimized C code or assembly language with an emphasis on short execution paths and few instructions in order to accomplish this. In order to avoid nested interrupt handling, which could result in higher latency and complexity, ISRs also frequently disable other interrupts. To strike a compromise between system stability and responsiveness, ISRs must be carefully designed and optimized.

The way ISRs interact with shared resources is one of their most important features. ISRs have to be built to securely manage concurrent access to shared data or hardware resources because they have the ability to interrupt the main application at any time. To avoid data corruption and guarantee consistent system behavior, synchronization techniques like flags, semaphores, or critical sections are frequently used. In order to preserve data integrity and prevent race situations, it is essential that shared resources within ISRs be managed appropriately.

To sum up, interrupt service routines are essential to real-time applications and embedded systems. They make it possible for systems to react quickly to both internal and external events, guaranteeing swift and effective processing. To balance responsiveness and system stability, ISR design and implementation must carefully take resource management, synchronization, and execution speed into account. Creating dependable embedded systems that can handle the demands of real-time processing requires an understanding of and skill with ISRs.

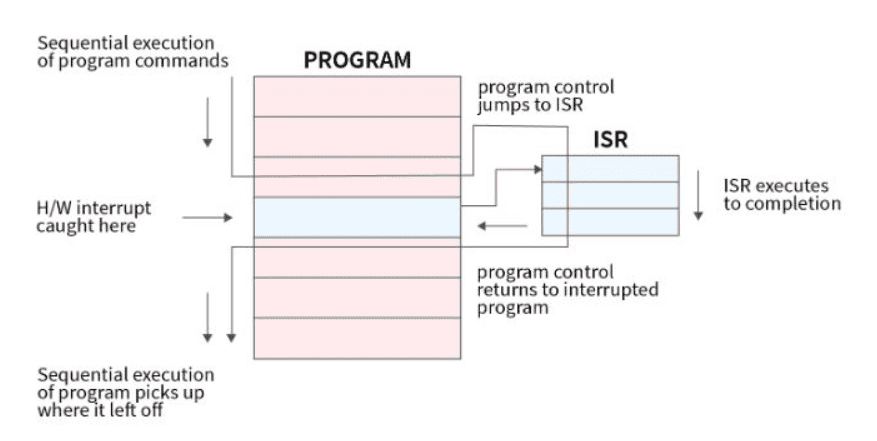

Working of ISR (Interrupt Service Routine)

Working of ISR (Interrupt Service Routine)

An interrupt is the first step in the operation of an interrupt service routine (ISR). Interrupts can be generated by software bugs or particular software situations, or they can be caused by hardware devices like timers or sensors. An interrupt alerts the processor to a situation that needs to be attended to right away. The CPU is prompted to momentarily stop running the present application upon receiving this interrupt signal.

The CPU manages and acknowledges the interrupt after it has been signaled. If there are numerous pending interrupts, this entails calculating the interrupt’s priority and making sure that the higher-priority interrupts are handled first. Setting priorities makes it possible to prioritize jobs so that higher-priority tasks can be completed first and lower-priority tasks can wait their turn. This is essential for keeping an effective and responsive system.

The CPU saves its current state, including the program counter, registers, and other important data, before handing over control to the ISR. After the ISR has finished its job, the processor can pick up where it left off in the main program thanks to this preserved state. In order to ensure that program execution remains consistent and uninterrupted and that the main program can carry on without interruption once the interrupt has been handled, it is necessary to save the processor state.

After that, the CPU executes the preset sequence of instructions tailored to the interrupt event by jumping to the memory location where the interrupt service routine is kept. These commands could be to read information from a hardware device, compute, set flags, or start other operations. Usually, the ISR is executed as fast as possible to minimize the length of the interruption and allow the main program to restart as soon as possible.

The CPU restores the program counter and registers to their previously saved states once the ISR has finished its job. The processor can now continue running the primary program as if the interrupt had never happened thanks to this restoration. The system makes sure that the primary program runs without interruption or data loss by precisely recovering the processor state. The smooth transition from ISR execution to the main program is essential to preserving the efficiency and dependability of the system.

An interrupt handler (ISR) functions by means of a sequence of synchronized actions, which include interrupt generation, acknowledgment, processor state saving, ISR execution, and processor state restoration. Every stage is meticulously planned to guarantee that disruptions are managed quickly and effectively, preserving the stability and responsiveness of the system. In order for real-time and embedded systems to function effectively and fulfill the demands of time-sensitive tasks and events, it is imperative that they be designed and implemented with integrity.

The working of an Interrupt Service Routine (ISR) involves the following steps:

01. Interrupt Generation:

  • Triggered by hardware (e.g., timers, sensors) or software (e.g., internal errors).

02. Interrupt Handling and Acknowledgment:

  • The processor receives and acknowledges the interrupt.
  • Determines interrupt priority if multiple interrupts are pending.

03. Saving the Processor State:

  • The current state (program counter, registers) is saved.
  • Ensures the main program can resume correctly after ISR execution.

04. Executing the ISR:

  • The processor jumps to the ISR memory location.
  • ISR performs specific tasks (e.g., reading data, setting flags).

05. Restoring the Processor State:

  • The processor restores the saved state after ISR completion.
  • The main program resumes execution from the point of interruption.

This process ensures timely and efficient handling of interrupts while maintaining the continuity and stability of the main program.

Purpose of ISR (Interrupt Service Routine)

The purpose of an Interrupt Service Routine (ISR) is to provide a mechanism for handling events that require immediate attention in a timely and efficient manner. Here are the key purposes of ISRs:

01. Immediate Response to Events:

ISRs allow the system to quickly respond to hardware or software events, such as input from sensors, communication signals, or error conditions.

02. Efficient Resource Management:

By handling interrupts promptly, ISRs help in the efficient utilization of system resources, ensuring that critical tasks are addressed without unnecessary delays.

03. Maintaining System Responsiveness:

ISRs enhance the responsiveness of the system by prioritizing urgent tasks and ensuring that time-sensitive operations are performed as needed.

04. Real-Time Processing:

In real-time systems, ISRs are crucial for meeting strict timing requirements, allowing the system to perform operations within defined time constraints.

05. Minimizing Main Program Disruption:

ISRs are designed to execute quickly and restore the system to its prior state, minimizing the disruption to the main program and ensuring seamless continuation of normal operations.

By fulfilling these purposes, ISRs play a vital role in the functionality and reliability of embedded systems and real-time applications.

This was about “What Is ISR (Interrupt Service Routine), Working”. Thank you for reading.
