Why PMSM Is Very Popular In Electric Vehicles?

Chetan Shidling
Why BLDC Motor is very popular.

Hello guys, welcome back to our blog. Here in this article, we will discuss why PMSM is very popular in electric vehicles compared to other types of electrical motors, and we will explain different terms about it.

Ask questions if you have any electrical, electronics, or computer science doubts. You can also catch me on Instagram – CS Electrical & Electronics.

Also, read:

Why PMSM Is Very Popular In Electric Vehicles

A Permanent Magnet Synchronous Motor (PMSM) is a type of synchronous motor that employs permanent magnets embedded in the rotor to generate a constant magnetic field. Unlike induction motors, PMSMs do not rely on electromagnetic induction to produce the rotor’s magnetic field. Instead, the rotor’s magnetic field is created by high-strength permanent magnets made from rare-earth materials like neodymium or samarium-cobalt. This design allows for high efficiency and power density, making PMSMs highly suitable for applications requiring precise control and high performance.

The basic operating principle of a PMSM revolves around the interaction between the magnetic field generated by the stator windings and the constant magnetic field of the rotor. When an alternating current (AC) is supplied to the stator windings, it produces a rotating magnetic field. The rotor, which is magnetized by the permanent magnets, aligns with this rotating magnetic field, causing it to rotate at the same speed as the stator’s magnetic field. This synchronous operation ensures a constant speed under varying loads, which is one of the critical advantages of PMSMs.

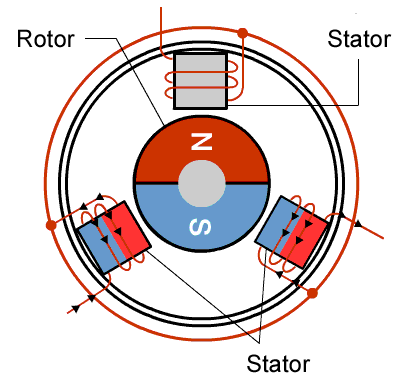

Permanent Magnet Synchronous Motor (PMSM)

PMSMs are classified into two main types based on the placement of the permanent magnets: surface-mounted and interior. In surface-mounted PMSMs, the magnets are attached to the surface of the rotor, which simplifies manufacturing but can limit the speed due to potential mechanical stresses on the magnets. Interior PMSMs, on the other hand, have magnets embedded within the rotor, providing better mechanical integrity and allowing for higher rotational speeds. This construction also helps in achieving a better flux weakening capability, which is essential for applications requiring a wide speed range.

One of the primary benefits of PMSMs is their high efficiency, which can reach up to 96%. This efficiency is attributed to the absence of rotor windings and the associated losses. Additionally, PMSMs exhibit excellent torque-to-weight ratios and power density, making them ideal for use in electric vehicles (EVs), aerospace applications, and industrial automation. The high power density means that PMSMs can deliver more power for a given size and weight compared to other motor types, which is particularly beneficial in applications where space and weight are critical constraints.

Control of PMSMs is typically achieved through sophisticated control algorithms such as field-oriented control (FOC) or direct torque control (DTC). These algorithms allow precise control of the motor’s torque and speed by managing the current supplied to the stator windings. FOC, for example, decouples the torque and flux control, enabling independent control of each component and thus providing smooth and efficient operation over a wide range of speeds. This precise control is crucial for applications requiring high performance and dynamic response.

PMSMs also have some limitations, including the cost of the permanent magnets, which are made from rare-earth materials that can be expensive and subject to supply chain fluctuations. Additionally, PMSMs require sophisticated electronic control systems to manage the motor’s operation effectively. These control systems add complexity and cost to the overall motor system. Moreover, the performance of PMSMs can be significantly affected by temperature variations, as the magnetic properties of the permanent magnets can change with temperature, necessitating careful thermal management in many applications.

The adoption of PMSMs has been accelerating in recent years, driven by advancements in materials and control technologies. In the automotive industry, the shift towards electric mobility has significantly increased the demand for PMSMs, as they provide the necessary performance and efficiency for electric and hybrid vehicles. Similarly, in renewable energy applications, such as wind turbines, PMSMs are favored for their reliability and efficiency. The ability to operate at variable speeds without significant efficiency loss makes them well-suited for harnessing fluctuating renewable energy sources.

In conclusion, Permanent Magnet Synchronous Motors is a pivotal technology in the modern electromechanical landscape, offering unparalleled efficiency, power density, and precise control. While there are challenges associated with their cost and complexity, ongoing research and development are continuously improving their performance and affordability. As the demand for energy-efficient and high-performance motor solutions grows across various industries, PMSMs are set to play an increasingly important role in powering the future of electric mobility, industrial automation, and renewable energy systems.

PMSM In Electric Vehicles?

Permanent Magnet Synchronous Motors (PMSMs) play a crucial role in the advancement and performance of electric vehicles (EVs). These motors are favored in EV applications due to their high efficiency, compact size, and superior torque characteristics, which are essential for delivering the desired performance and range in modern electric vehicles.

One of the primary reasons for the adoption of PMSMs in electric vehicles is their high efficiency. PMSMs can achieve efficiency levels up to 96%, which is significantly higher compared to other types of motors, such as induction motors. This high efficiency translates directly into extended driving range for electric vehicles, as less energy is wasted in the form of heat. This is particularly important for EVs, where maximizing the range per battery charge is a critical selling point.

The compact size and high power density of PMSMs make them ideal for automotive applications where space and weight are at a premium. PMSMs provide a higher torque-to-weight ratio, which means they can deliver more power from a smaller and lighter motor. This attribute contributes to better vehicle dynamics, as the reduced weight of the motor leads to improved handling and overall vehicle performance. Additionally, the compact nature of PMSMs allows for more flexible vehicle design, enabling manufacturers to optimize space for other components or for passenger and cargo areas.

In terms of performance, PMSMs offer excellent torque characteristics, particularly at low speeds. This is a significant advantage for electric vehicles, as it allows for quick acceleration from a standstill, enhancing the driving experience. The ability of PMSMs to maintain consistent torque delivery across a wide range of speeds ensures smooth and responsive driving, which is crucial for urban driving conditions and for maintaining highway speeds efficiently.

The precise control offered by PMSMs is another vital factor for their use in electric vehicles. Advanced control techniques such as field-oriented control (FOC) enable precise management of the motor’s torque and speed. This precise control allows for improved efficiency, better performance, and reduced wear on the motor components, leading to longer motor life and lower maintenance costs. The ability to finely tune motor performance also helps in optimizing energy consumption, which is critical for extending the driving range of electric vehicles.

Despite their advantages, PMSMs also present some challenges, primarily related to the cost of the permanent magnets used in the rotor. These magnets are made from rare-earth materials, which are expensive and subject to supply chain volatility. However, ongoing advancements in material science and motor design are helping to mitigate these issues. Researchers are exploring alternative materials and motor designs that can reduce the reliance on rare-earth magnets without compromising performance.

Thermal management is another consideration for PMSMs in electric vehicles. The performance of permanent magnets can be affected by temperature variations, which necessitates effective cooling systems to maintain optimal operating temperatures. Modern EV designs incorporate advanced thermal management systems to ensure that PMSMs operate within their ideal temperature range, thus preserving their efficiency and longevity.

The integration of PMSMs into electric vehicles is supported by continuous improvements in electronic control systems. These systems are becoming more sophisticated and cost-effective, making it easier to implement advanced control algorithms that enhance motor performance and efficiency. Additionally, the increasing use of software-defined control allows for more flexibility and adaptability in motor management, which can further optimize the performance of PMSMs in electric vehicles.

In conclusion, Permanent Magnet Synchronous Motors are a key technology in the development of high-performance, efficient, and reliable electric vehicles. Their high efficiency, compact size, excellent torque characteristics, and precise control capabilities make them well-suited for the demands of modern electric mobility. As advancements in materials, motor design, and control systems continue, PMSMs are expected to become even more integral to the future of electric vehicles, helping to drive innovation and improve the overall viability and appeal of electric transportation.

Comparison Of PMSM With Other Motors

When comparing Permanent Magnet Synchronous Motors (PMSMs) with other types of motors commonly used in various applications, several factors such as efficiency, control, cost, performance, and application suitability come into play. Here’s a detailed comparison of PMSMs with induction motors (IMs), brushed DC motors, brushless DC motors (BLDCs), and switched reluctance motors (SRMs):

PMSMs vs. Induction Motors (IMs)

01. Efficiency:

  • PMSMs: Higher efficiency (up to 96%) due to the absence of rotor windings and associated losses.
  • Induction Motors: Generally less efficient because they rely on electromagnetic induction to generate the rotor’s magnetic field, leading to additional losses.

02. Control and Performance:

  • PMSMs: Offer precise control and high performance, particularly at low speeds, making them suitable for applications requiring accurate speed and position control.
  • Induction Motors: Control is more complex due to the slip between the rotor and the rotating magnetic field. They are less efficient at low speeds but robust and reliable.

03. Cost:

  • PMSMs: More expensive due to the use of rare-earth permanent magnets.
  • Induction Motors: Generally cheaper and widely used due to their simpler construction and absence of expensive materials.

04. Applications:

  • PMSMs: Preferred in electric vehicles (EVs), robotics, and aerospace due to their high efficiency and compact size.
  • Induction Motors: Common in industrial applications, HVAC systems, and pumps due to their durability and cost-effectiveness.

    PMSMs vs. Brushed DC Motors

    01. Efficiency:

    • PMSMs: More efficient because they lack brushes and commutators, reducing friction and wear.
    • Brushed DC Motors: Less efficient due to losses in the brushes and commutators.

    02. Maintenance:

    • PMSMs: Require less maintenance as there are no brushes to replace.
    • Brushed DC Motors: Require regular maintenance to replace brushes and commutators.

    03. Control and Performance:

    • PMSMs: Offer smoother and more precise control.
    • Brushed DC Motors: Provide simple and straightforward control but with less precision and smoothness.

    04. Applications:

    • PMSMs: Suitable for high-precision applications like EVs and robotics.
    • Brushed DC Motors: Used in low-cost and simple applications such as toys and basic home appliances.

      PMSMs vs. Brushless DC Motors (BLDCs)

      01. Construction:

      • PMSMs: Typically have a sinusoidal back-EMF waveform.
      • BLDCs: Characterized by a trapezoidal back-EMF waveform.

      02. Efficiency and Control:

      • PMSMs: Generally offer higher efficiency and more precise control due to sinusoidal current control.
      • BLDCs: Slightly less efficient but simpler to control with trapezoidal commutation.

      03. Applications:

      • PMSMs: Ideal for applications requiring high efficiency and precise control, such as EVs and servo drives.
      • BLDCs: Suitable for applications where cost and simplicity are more critical, such as consumer electronics and low-end EVs.

        PMSMs vs. Switched Reluctance Motors (SRMs)

        01. Efficiency:

        • PMSMs: Higher efficiency, especially at low to medium speeds.
        • SRMs: Efficiency can vary widely but can be competitive with PMSMs at certain operating points.

        02. Control Complexity:

        • PMSMs: Require complex control algorithms but offer smooth torque and precise control.
        • SRMs: Require sophisticated control to manage torque ripple and acoustic noise but are robust.

        03. Cost:

        • PMSMs: Higher cost due to permanent magnets.
        • SRMs: Generally lower cost as they do not use permanent magnets and have a simpler construction.

        04. Applications:

        • PMSMs: Used in high-performance applications like EVs, robotics, and aerospace.
        • SRMs: Suitable for applications where robustness and cost are critical, such as industrial machinery and appliances.

          Summary

          • PMSMs stand out for their high efficiency, precise control, and suitability for high-performance applications. However, they come with higher costs due to the use of rare-earth magnets.
          • Induction Motors are cost-effective, robust, and widely used in industrial applications but are less efficient and harder to control.
          • Brushed DC Motors are simple and low-cost but less efficient and require more maintenance.
          • BLDC Motors offers a good balance of efficiency and control simplicity, suitable for various medium-performance applications.
          • SRMs are robust and cost-effective but require complex control to manage torque ripple and noise.

          The choice of motor depends heavily on the specific requirements of the application, including performance, efficiency, cost, and control complexity.

          This was about “Why PMSM Is Very Popular In Electric Vehicles?”. I hope this article may help you all a lot. Thank you for reading.
